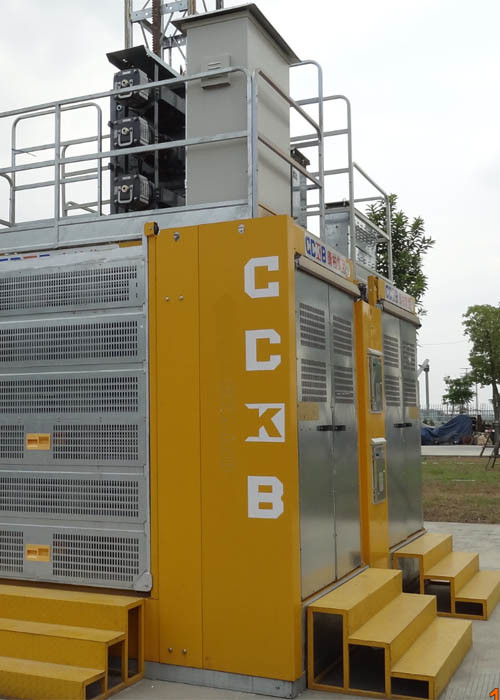

Durable Temporary Construction Elevators , Low Starting Current Construction Site Elevator
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Construction site hoist rack and pinion SC200BG MP-B11 SC200/200BG MP-B12 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate in USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | SC200/200, SC200 Temporary Construction Elevators | Application | Construction Site, Plants, Stock Houses |
|---|---|---|---|
| Design | Modular Design | Material | Q355B Steel |
| Production | As Per EN 12159:2012, EN 60204-1:2006/A1:2009. | Color | Yellow |
| Motor Control | Frequency Control (FC) | Operation Mode | Mast Climber |
| High Light | temporary construction elevators,construction passenger hoist |
||
Product Description
Construction site hoist rack and pinion SC200BG MP-B11 SC200/200BG MP-B12
Features and Advantages
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
* The integrated elevator car roof, which made by a steel plate with edges fully welded one time to complete, enhance hoist cage strength and ensure no water leakage.
* The additional big size third door at the cage side let the users to use fork trucks to load/unload extremely heavy and big size materials.
* Easy access to electrical panels of elevator for maintenance.
* Certified safety braking system of rack and pinion hoist.
* The material elevator car frame is enlarged and strengthened.
* The elevators are equipped with full set of safety facilities, including centrifugal brake, limit switches, Electromechanical interlocks.
* Frequency control motors make the construction hoists starting and stopping very smoothly, with low starting current and much less wear and tear.
Technical Data
| Item & Article No. | SC200BG, MP-B11; SC200/200BZ, MP-B12 |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 3x15 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
