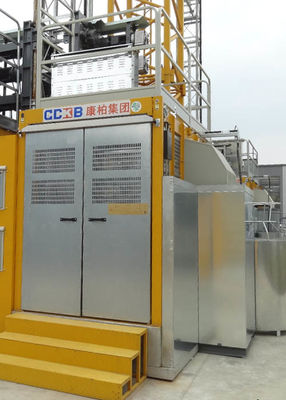

Modular Rack And Pinion Elevator Design Payload Capacity 3000Kg For Construction Site
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC300BG KP-B15 SC300-300BG KP-B16 |
| Minimum Order Quantity | 1 set |
| Price | negotiate |
| Packaging Details | Export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Specification | SC300 Rack And Pinion Elevator | Application | Construction Site, Building Site |
|---|---|---|---|
| Design | Modular | Material | Q355B |
| Production | According To European Standard | Finishing | Sandblasting And Painted, Galvanised |
| High Light | building hoist lift,building lifts elevators |
||
Product Description
Building site hoist rack and pinion elevator SC300BG KP-B15 SC300-300BG KP-B16
Features and Advantages
* The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
* The integrated elevator car roof, which made by a steel plate with edges fully welded one time to complete, enhance hoist cage strength and ensure no water leakage.
* Easy access to electrical panels of elevator for maintenance
* Certified safety braking system of rack and pinion hoist.
Certificate
TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.
Technical Data
| Item & Article No. | SC300BG, KP-B15; SC300/300BG, KP-B16 |
| Payload capacity |
3,000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 250/400 m* |
| Cage Size (internal) | 3.2(Length)*1.5((Width)*2.35(Height) meter |
| Motor control | FC control |
| Engine power | 3x23 kw |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | Square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
