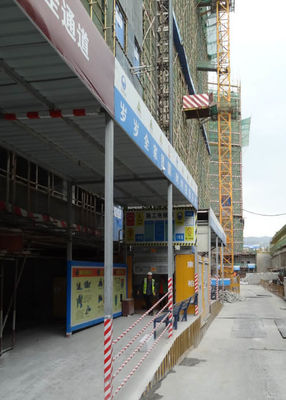

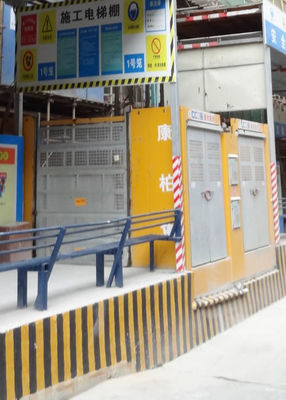

Modular SC200BZ Man Material Hoist , Passenger Hoist Safety Lifting Speed 0–46 M/Min
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV,CCC |
| Model Number | Passenger and material hoist rack and pinion SC200BZ MP-B07 SC200/200BZ MP-B08 |
| Minimum Order Quantity | 1 set |
| Price | In USD |
| Packaging Details | Export Package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Man And Material Hoist | Application | Passenger And Material Transportation |
|---|---|---|---|
| Design | Modular | Material | Q355B Steel |
| Production | As Per EN 12159:2012, EN 60204-1:2006/A1:2009. | Color | Yellow |
| High Light | man and material hoist,personnel and materials |
||
Product Description
Passenger and material hoist rack and pinion SC200BZ MP-B07 SC200/200BZ MP-B08
Configuration
Applying high efficient helical gearboxes.
There is a small crane for conenient assembly of the construction lift.
There is an additional 'C' door at cage side for convenient loading/unloading of heavy and large size materials.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
There is LED lighting inside construction elevator car.
Technical Data
| Item & Article No. | SC200BZ, MP-B07; SC200/200BZ, MP-B08 |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–46 m/min. |
| Max. Lifting Height | 250/400 m * |
| Cage Width (Internal) | 1.5 m |
| Cage Length (Internal) | 3.2 m |
| Cage Height (Internal) | 2.35 m |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 2x15 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack module | 8 |
| * Increased lifting height on request. 400 m with step-up/step-down transformer. | |
