Heavy Load Passenger And Material Hoist , Man Material Hoist SC250(BG) KP-B20
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC250/250(BG) KP-B20 |
| Minimum Order Quantity | 1 set |
| Price | In USD |
| Packaging Details | Export package |
| Delivery Time | 30 days after receipt of down payment or L/C |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | Passenger And Material Hoist Rack Pinion High Speed Heavy Load SC250(BG) KP-B20 | Model | SC250/250(BG) KP-B20 |
|---|---|---|---|
| Purpose And Uses | Vertical Transportation Of Man And Materials In Construction Site Or Building Site | Design | According To European Standard |
| Material | Q345B Steel | Production | As Per EN 12159:2012, EN 60204-1:2006/A1:2009 |
| High Light | man and material hoist,personnel and materials |
||
Product Description

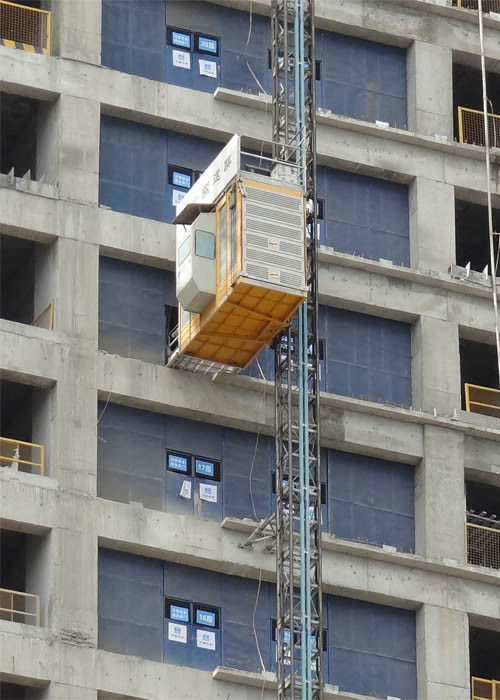

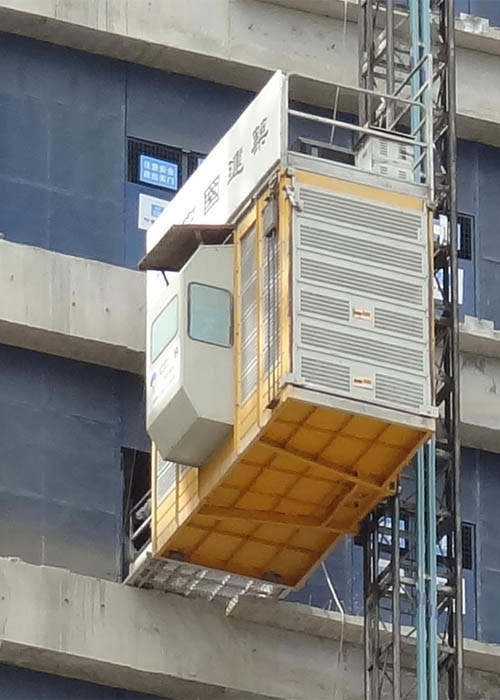

Passenger and material hoist rack pinion high speed heavy load SC250(BG) KP-B20
Features and Advantages
* The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers which are made specially for rack and pinion elevators only. The construction hoist reducers are extremely strong, reliable and durable.
* Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
* The integrated elevator car roof, which made by a steel plate with edges fully welded one time to complete, enhance hoist cage strength and ensure no water leakage.
* Easy access to electrical panels of elevator for maintenance.
* Certified safety braking system of rack and pinion hoist.
* The elevators are equipped with full set of safety facilities, including centrifugal brake, limit switches, Electromechanical interlocks.
* Frequency control unit (FC), with closed-loop, which gives the passenger and material hoists very smooth starting and stopping with low starting current and less wear and tear.
Technical Data
| Item & Article No. | SC250/250(BG) KP-B20 |
| Payload Capacity | 2,500 KG per Cage |
| Lifting Speed | 0–80 m/min. |
| Max. Lifting Height | 450 m |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor Control | Frequency Control |
| Engine Power | 3x38 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack Module | 8 |
| Details of the Equipment | ||
| Item | Dimension/Specification | Material & Process |
| Standard Configuration | ||
| Cage Internal Size | 3.2(L)*1.5(W)*2.35(H) Meters | Perforated Galvanised Cold Roll Steel Plate |
| Cage Frame | Optimized and Strengthened Structure | Q345B Steel |
| Cage Paint | Yellow | Sandblasting and Painted |
| Cage Entry Door | Vertical Sliding | Galvanised Perforated Cold Roll Steel Plate |
| Cage Exit Door | Vertical Sliding/Flap Type | Galvanised Perforated Cold Roll Steel Plate |
| Driver's Cabin | Excluded/Included | |
| Motor Make | LUCASA make | |
| Gearbox | Kangbo Make Pieli Brand Helical Gearbox | |
| Mast Section | 650*650*1508mm, Φ76mm, δ4.5mm | Q345B Steel, Painted |
| Rack | 40*60*1508mm, 8 Modulus. | |
| Tie-in | Type II, 2900-3400mm; Every 9 m one set; | |
| Or as per users request | ||
| Safety Device | SAJ50-2.0 | |
| Ground Enclosure | Galvanised Cold Roll Steel Plate | |
| Enclosure Door | Double Hinge Side Open Door | Perforated Galvanised Cold Roll Steel Plate |
| Power Supply | Cable & Cable Drum | Galvanised Cold Roll Steel Plate |
| Over Load Protect | Included | |
| Optional Configuration | ||
| Mast Section | 650*650*1508mm, Φ76mm, δ4.5mm | Q345B Steel, Galvanised |
| Power Supply | Slide Contact Line System (Busbar) | |
| Floor Selection | Multi-functional Control System (Floor selector, Automatic Landing, Error Detection and Display, etc.) | |
| TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009. | ||
