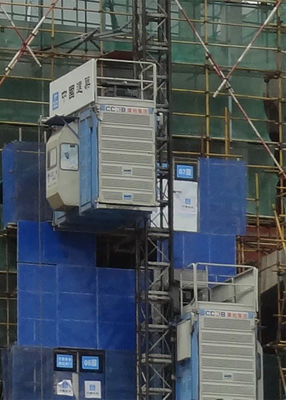

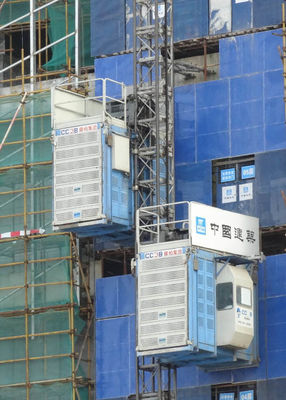

Rack Pinion Type Construction Site Hoist Twin Cage VFD SC100/100(BZ) KP-B02
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Rack Pinion VFD SC100/100(BZ) KP-B02 |
| Minimum Order Quantity | 1set |
| Price | Negotiate in USD |
| Packaging Details | Export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | Construction Site Hoist Rack Pinion Type Twin Cage VFD SC100/100(BZ) KP-B02 | Model | Rack Pinion VFD SC100/100(BZ) KP-B02 |
|---|---|---|---|
| Application | Vertical Transportation Equipment In Construction Site | Design | Modular Design And According To EU Standard |
| Material | Q345B Steel | Finishing | Sandblasting And Paint, Galvanised |
| High Light | construction passenger hoist,goods hoist lift |
||
Product Description
Construction site hoist rack pinion type twin cage VFD SC100/100(BZ) KP-B02
Features and Advantages
* The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
* The integrated elevator car roof, which made by a steel plate with edges fully welded one time to complete, enhance hoist cage strength and ensure no water leakage.
* Easy access to electrical panels of elevator for maintenance.
* Certified safety braking system of rack and pinion hoist.
* The material elevator car frame is enlarged and strengthened.
* The elevators are equipped with full set of safety facilities, including centrifugal brake, limit switches, Electromechanical interlocks.
* Frequency control unit (FC), with closed-loop, which gives the passenger and material hoists very smooth starting and stopping with low starting current and less wear and tear.
TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.
Technical Data
| Item & Article No. | SC200/200(BD) KP-B02 |
| Payload capacity | 1,000 kg |
| Lifting speed | 0–54 m/min. |
| Max. lifting height | 250/400 m* |
| Cage quantity | 2 cages |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 2x2x15 kw |
| Gearbox | Helical reducer, Pieli brand |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
| Art. No. | Model | Payload (KG) |
Lifting Speed (m/min) | Motor Power (KW) | Invertor Power (KW) | Max Height (M) | Invertor Brand | Motor | Gear Box | Voltage & Frequency |
| KP-B01 | SC100(BZ) | 1000 | 0-54 | 15×2 | 37×1 | 450 | Schneider | Chinese | PIELI Helical Gear Box | 380–500 V, 50 or 60 Hz, 3 Phase |
| KP-B02 | SC100/100(BZ) | 1000 | 0-54 | 15×2×2 | 37×2 | 450 | Schneider | Chinese | PIELI Helical Gear Box | 380–500 V, 50 or 60 Hz, 3 Phase |
