Built In Electrical Cabinet Helical Gearbox 400m Passenger And Material Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Passenger and Material Hoist SC200 VFD with built-in electrical cabinet KP-B05 |
| Minimum Order Quantity | One unit |
| Price | Negociate in USD |
| Packaging Details | Suitable for export |
| Delivery Time | 30 days after receipt of L/C or down payment |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | Passenger And Material Hoist SC200 VFD With Built-in Electrical Cabinet KP-B05 | Application | Vertical Transportation At Building Site |
|---|---|---|---|
| Design | As Per EU Regulation | Material | Q345B Steel |
| Processing | CNC Machine Tools | Finishing | Sandblasting And Baking Finish |
| High Light | 400m construction site hoist,36 m / min building site hoist |
||
Product Description

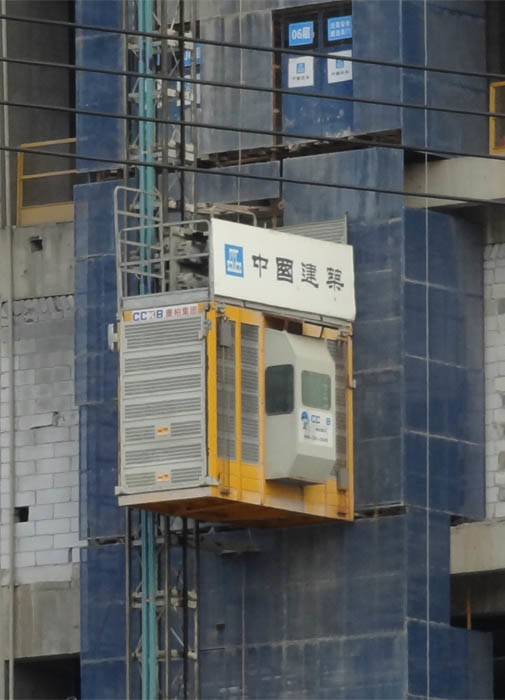

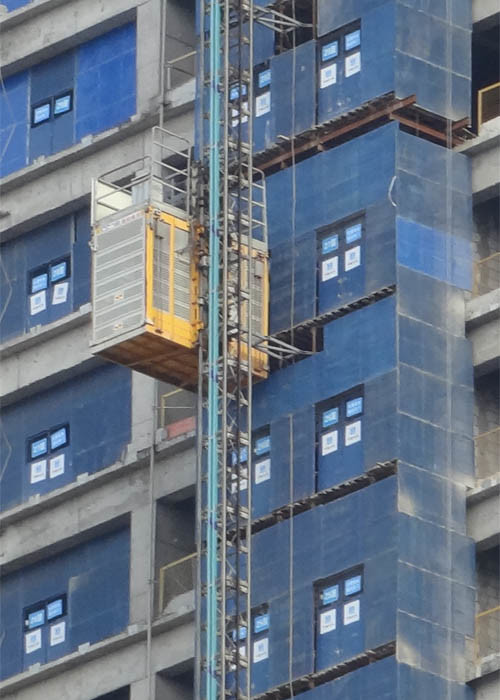

Passenger and Material Hoist SC200 VFD with built-in electrical cabinet KP-B05
Features and Advantages
* The modular and standardizing system makes the Kangbo construction elevators be flexible, low energy consumptive and ownership cost.
* The material hoist runs without vibration or trembling and it starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt helical gearbox which made specially for rack and pinion lifts, with high efficiency, make the users save much electricity costs.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
* The integrated elevator car roof, with edges fully welded to ensure no water leakage.

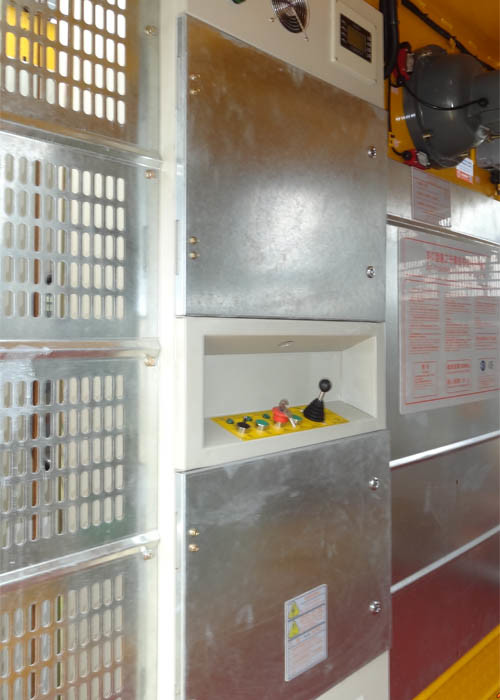

* The built-in electrical cabinet make the maintenance personnels be comfortable and safe during maintenance.
Technical Data
| Item & Article No. | SC200BD, KP-B05 |
| Payload Capacity | 2,000 kg |
| Lifting Speed | 0–36 m/min. |
| Max. Lifting Height | 400m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter |
| Motor Control | FC control |
| Engine Power | 2x11 kw per cage |
| Gearbox | Helical Reducer |
| Safety Device Type | Centrifugal Brake, SAJ40-1.2 |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
| * Increased lifting height on request. 400 m with step-up/step-down transformer. | |
