SC200 VFD Approved Single Cage Rack And Pinion Elevator
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Passenger and Material Hoist SC200 VFD TUV Approved Single Cage KP-B09 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiate in USD |
| Packaging Details | in Containers |
| Delivery Time | 30 days after receipt of L/C or down payment |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | Passenger And Material Hoist SC200 VFD TUV Approved Single Cage KP-B09 | Application | Vertical Transportation Equipment At Construction Site |
|---|---|---|---|
| Design | According To European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009. | Material | Q345B Steel Plate |
| Production | Standardized Production, Processed By CNC Machine Tools. | Finishing | Sandblasting And Baking Finish |
| High Light | rack and pinion hoist,rack & pinion hoist |
||
Product Description

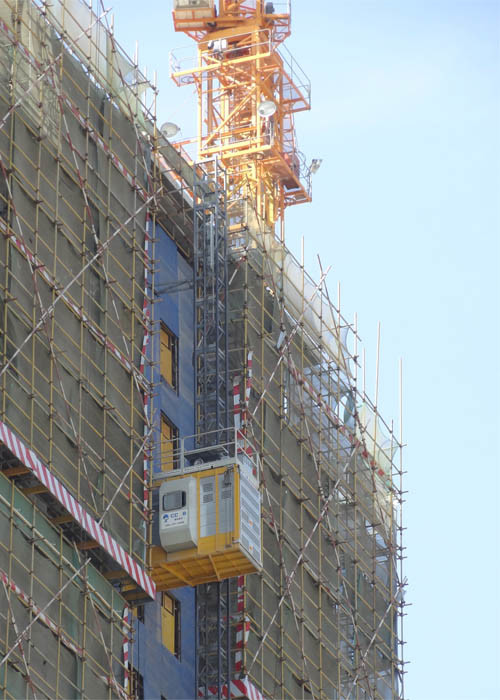

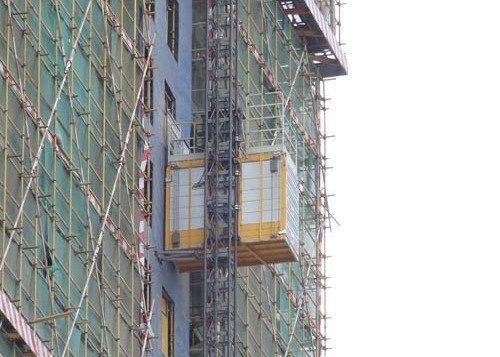

Passenger and Material Hoist SC200 VFD TUV Approved Single Cage KP-B09
Unique Features
KANGBO passenger and material hoists apply non-eccentric rollers, make the installation of hoists be faster and easier, with much less error. The users don't need to send the skillful technicians to adjust the rollers position again and again after installation.
The structure steel of the cages and drive devices are thicken and enlarge to ensure the strength and worklife.
The structure is made of Q345B steel, the width of KANGBO cage's main steel channel is 160mm, other brand is 120mm only.
The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.
Many users of construction hoists worry about water leakage of hoist cage in rainy season. They have to make the water proof layer on cage roof regularly to solve the leakage problem.
But KANGBO users don't need to do water proof works by themselves because the edges of KANGBO hoist cage roof are totally and fully welded.
The users don't need to do water proof by themselves regularly.

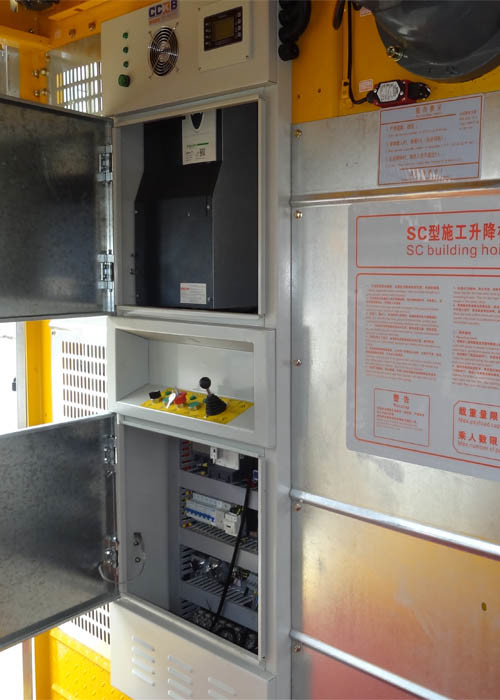

The built-in electrical control cabinet inside the car of hoist make the maintenance personnels comfortable and safe to do their works.
Technical Data
| Item & Article No. | SC200 KP-B09 |
| Payload capacity | 2,000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 450 meters |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 2x23 kw/87Hz |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650*1508 mm with bolted rack |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
