SC200 KP-B11 60 Meter / Minute Passenger And Material Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Passenger and Material Hoist SC200 KP-B11 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiate in USD |
| Packaging Details | By containers |
| Delivery Time | 35 days after receipt of L/C or T/T |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | SC200 High Speed VFC Motors KP-B11 | Description | Passenger And Material Hoist |
|---|---|---|---|
| Application | Vertical Transportation Of Man And Materials In Construction Site Or Building Site, Bridges, Chimney, Plants, Etc.. | Design | Truly Modular And According To European Regulation |
| Material | Q355 | Process | By CNC Machines And Tool Fixtures |
| High Light | 450m building site hoist,passenger lift for construction site |
||
Product Description

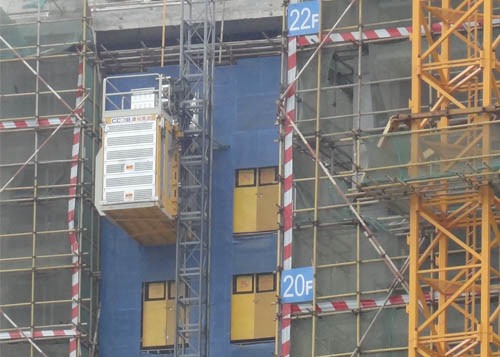

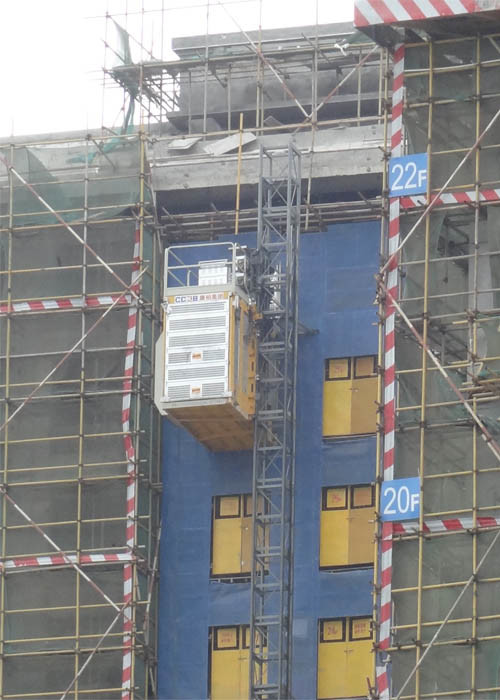

Passenger and Material Hoist SC200 High Speed VFC Motors KP-B11
Standard Configuration
An electrical small crane available to facilitate the assembly of the construction elevator.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
Lighting inside construction elevator car is LED ceiling lamp
The construction material hoist cage roof doors are equipped with Interlock.
Equipped with hoist drop test facility with remote control.
A frequency control unit (FC), with closed-loop, be equipped.
Optional Configuration
Rack and pinion elevator cage flap door as loading/unloading ramp.
Sliding Contact Line (Integrated Conductive Rail or Busbar) specially for rack and pinion lifts.
An intelligent elevator control system, Multi-function Control System, with functions of fault detect, display and alarm, and automatic cage landing/stop and floor selector, is available.
Automatic greasing machine for rack and pinion elevator is availble.
Technical Data
| Item & Article No. | SC200BG, KP-B11 |
| Cage Nos. | Single Cage |
| Payload Capacity | 2,000KG |
| Lifting Speed | 0–60 meter / minute with Full Load. |
| Max. Lifting Height | 450m |

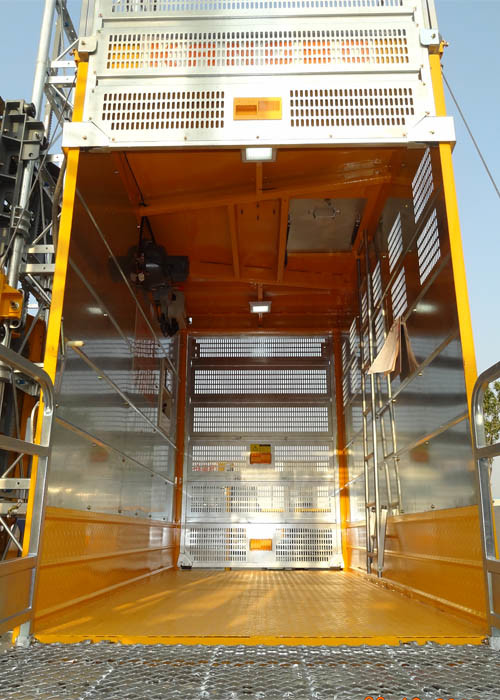

| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) meter |
| Motor Power | 3x15 KW |
| Motor Control | Frequency Control (FC) |
| Invertor Power (KW) | 1*55KW |
| Gearbox | PIELI Helical Gearbox |
| Anti-drop Safety Device | Centrifugal Brake, SAJ40-1.6 |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack Modulus | 8 Modulus, 60 teeth |
