SC200-200 VFC Motors KP-B12 Construction Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200-200 High Speed VFC Motors Construction Hoist KP-B12 |
| Minimum Order Quantity | 1 unit |
| Price | Negotiate in USD |
| Packaging Details | By containers |
| Delivery Time | 35 days after receipt of L/C or T/T |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | SC200-200 High Speed VFC Motors Construction Hoist KP-B12 | Application | Building Sites |
|---|---|---|---|
| Design | Modular Design And As Per EU Regulations | Material | Q355B |
| Finishing | Sandblasting And Baking Finish | Color | Yellow |
| High Light | Q355B Construction Hoist,2000KG Construction Hoist |
||
Product Description
Passenger Material SC200-200 High Speed VFC Motors Construction Hoist KP-B12
Features and Advantages
* Racks and Pinions are 8 Modulus, the most popular specification which is convenient for users to maintain and replace.
* The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
* The material hoist runs without vibration or trembling. The man and material lift starts and stops without surging or jerking.
* The passenger and elevator is reliable with very little breakdown and is durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.

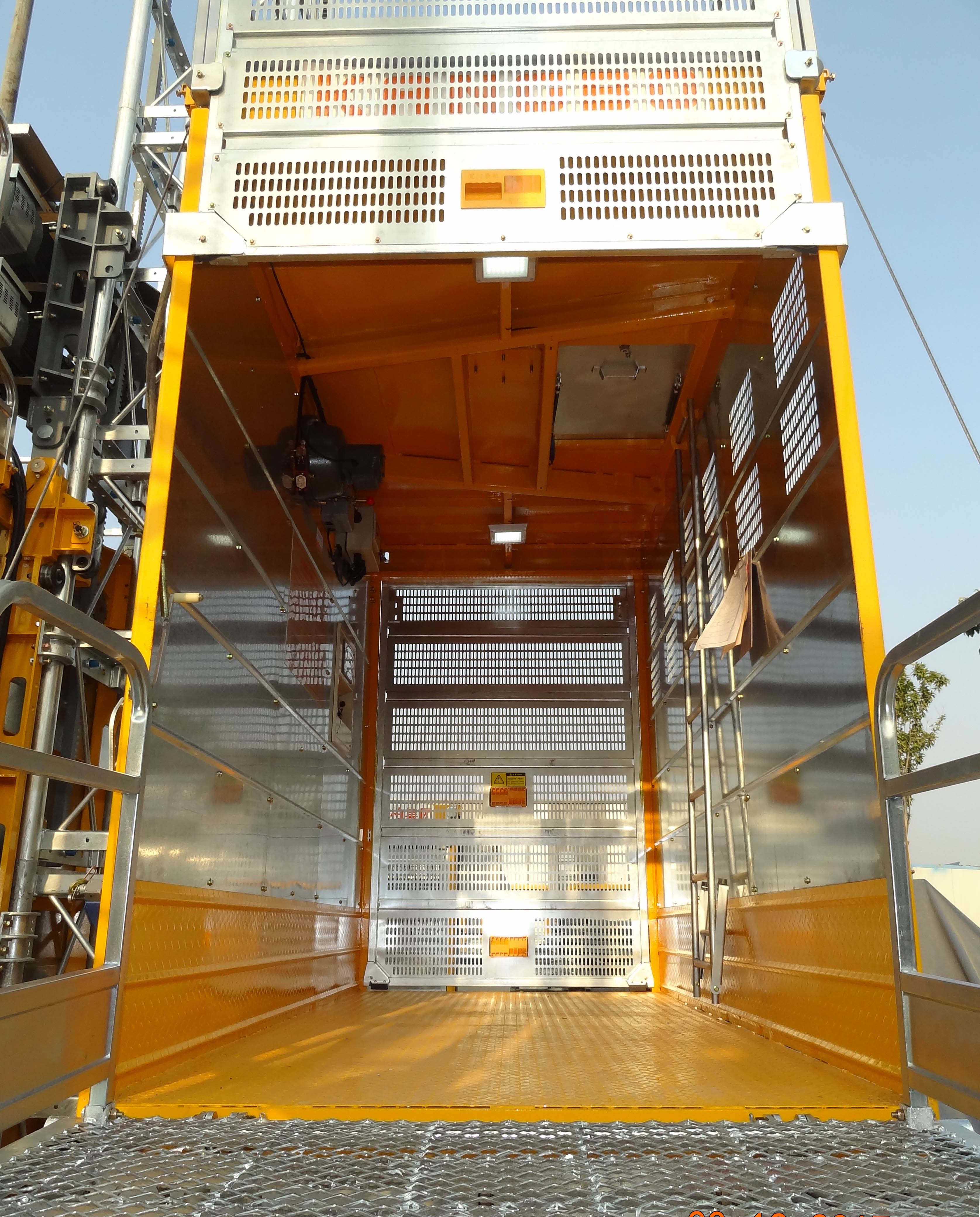

* The integrated elevator car roof, which made by a steel plate with edges fully welded one time to complete, enhance hoist cage strength and ensure no water leakage.
* Easy access to electrical panels of elevator for maintenance.
* Certified safety braking system of rack and pinion hoist.
* The material elevator car frame is enlarged and strengthened.
* The elevators are equipped with full set of safety facilities, including centrifugal brake, limit switches, Electromechanical interlocks.
Technical Data
| Item & Article No. | SC200/200BG, KP-B12 |
| Cage Nos. | Twin Cage |
| Payload Capacity | 2000KG per Cage |
| Lifting Speed | 0–60 meter/minute with Full Load |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) meter |
| Motor Power | 3x15 KW per Cage |
| Motor Control | Frequency Control (FC) |
| Invertor Power (KW) | 1*55KW per Cage |
| Gearbox | PIELI Helical Gearbox |
| Anti-drop Safety Device | Centrifugal Brake, SAJ40-1.6 |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack Modulus | 8 Modulus, 60 Teeth |
