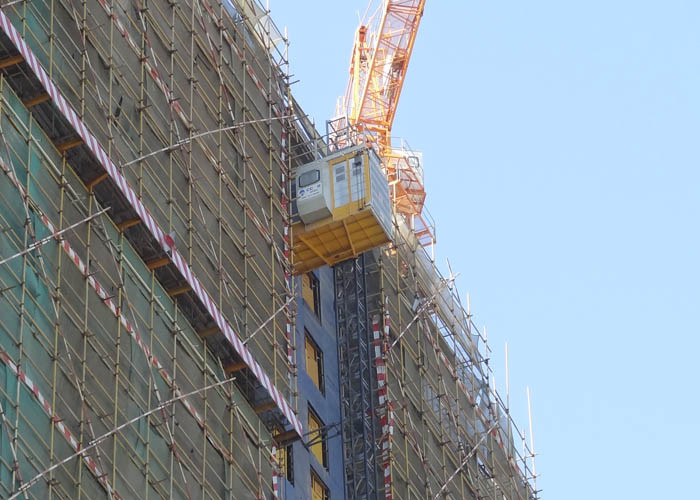

Racks And Pinion Transportation VFD Construction Material Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Construction material hoist rack and pinion type SC300BG MP-B15 SC300/300BG MP-B16 |
| Minimum Order Quantity | 1 unit |
| Price | In USD, RMB |
| Packaging Details | In containers |
| Delivery Time | 25 - 30 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 300 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Construction Material Hoist | Application | Transportation Of Man And Material At Constuction Site |
|---|---|---|---|
| Design | Modular Design | Production | As Per Regulation EN 12159:2012, EN 60204-1:2006/A1:2009 |
| Drive Mode | Variable Frequency Drive (VFD) | Feature | High Safety |
| Highlight | rack and pinion hoist,VFD Construction Hoist |
||
Product Description
Racks And Pinion High Safety Construction Material Hoist with 3 Door Cage
Construction Material Hoist Main Parts
1. The gearing of gearbox adopts imported bearing, and oil seal.
2. The electric parts adopt products from world renowned manufactures.
3. The racks and pinion adopts special material and heat-treatment technique, which prolong the life of these parts.
4. The steel structure uses quality steel from famous domestic manufactures.
5. The surface of the structure can apply paint-spray, parkerozing baking finish or hot galvanizing processing according to users requirements,
Configuration
There is a electrical small crane available to facilitate the assembly of the construction elevator.
Additional 'C' door at cage side for convenient loading/unloading is available.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
Lighting inside construction elevator car is LED ceiling lamp
Technical Data
| Item & Article No. | SC300BG, MP-B15; SC300/300BG, MP-B16 |
| Payload Capacity | 3,000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 250/400 m* |
| Cage Width (Internal) | 1.5 m |
| Cage Length (Internal) | 3.2 m |
| Cage Height (Internal) | 2.35 m |
| Cage Doors | Third door at the long side of cage is available |
| Motor Control | FC (Frequency Control) |
| Engine Power | 3x23 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
