Rack And Pinion Electrical Control 3000Kg Man Material Hoist
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Man Material Hoist | Application | Vertical Transportation Of Man And Materials In Construction Site Or Building Site, Bridges, Chimney, Plants, Etc. |
|---|---|---|---|
| Feature | High Safety | Material | Q345B Cool Roll Steel Plate |
| Motor Control | VFD | Control | Electrical Control |
| Highlight | rack and pinion hoist,3000kg Material Hoist |
||
Product Description
High Safety Electrical Control 3000Kg Man Material Hoist
Man Material Hoist Advantages
1. Low operating cost but high efficiency;
2. Simplicity in operation;
3. High degree of safety;
4. Long durability;
5. Low energy consumption.
Man Material Hoist Technical Data
| Item & Article No. | SC300BG, KP-B15; SC300/300BG, KP-B16 Man Material Hoist |
| Payload capacity | 3,000 kg |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 250/400 m* |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | Frequency Control |
| Engine power | 3x23 kw |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square column 650*650*1508 mm with bolted rack |
| Rack module | 8 |

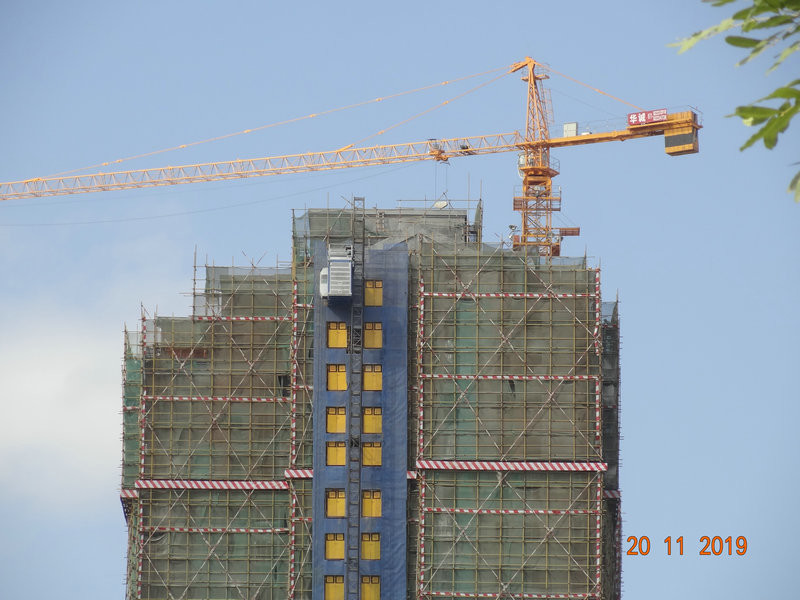

Man Material Hoist Picture
