Electric Power Building Rack And Pinion Elevator
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Building site hoist SC320(BZ) KP-B17 SC320/320(BZ) KP-B18 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate in USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Rack And Pinion Elevator | Application | Electric Power Building |
|---|---|---|---|
| Material | Cold Rolled Steel Plate | Processing | Cut By Laser, Processed By CNC Machines In Tool Fixtures |
| Finishing | Sandblasting And Painted, Galvanised | Color | Customized |
| Highlight | rack & pinion hoist,rack & pinion building hoist |
||
Product Description
Cold Rolled Steel Plate Electric Power Building Rack And Pinion Elevator
Rack And Pinion Elevator Application

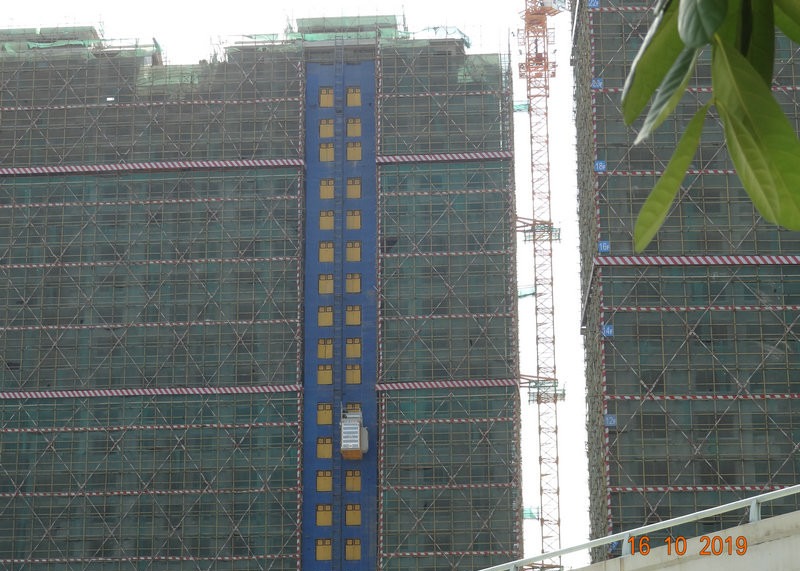

We are special supplier of building hoist in China, our building hoist have been Widely exported to all over the world and won good reputation, whose payload capacity is as much as 3200kg, lifting speed can reach up to 96m/min, and the erection height reaches up to 450m., our products have been widely used for transportation for both men and cargo in field of general buildings, but also industry, electric power, mining well, oil, chemical industry etc.
Rack And Pinion Elevator Standard Configuration
There is a small crane for conenient assembly of the construction lift.
Available in single or twin hoist cage configuration.
Manual or Automatic Controls of the hoist is optional.
Lighting inside construction elevator car is LED ceiling lamp
The construction material hoist cage roof doors are equipped with Interlock.
Equipped with hoist drop test facility with remote control.
A frequency control unit (FC), with closed-loop, be equipped.
Rack And Pinion Elevator Optional equipment
An intelligent elevator control system, Multi-function Control System, with functions of fault detect, display and alarm, and automatic cage landing/stop and floor selector, is available.
Automatic greasing machine for rack and pinion elevator is availble.
Multi-function Control System of fault detect, display and alarm, and automatic cage landing/stop and floor selection is available.
Rack And Pinion Elevator Technical Data
| Item & Article No. | SC320(BZ) KP-B17, SC320/320(BZ) KP-B18 Rack And Pinion Elevator |
| Payload capacity | 3,200 kg per cage |
| Lifting speed | 0–46 m/min. |
| Max. lifting height | 450 m |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 3x15 kw per cage |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast section | square column 650*650*1508 mm with bolted rack |
| Rack module | 8 |
