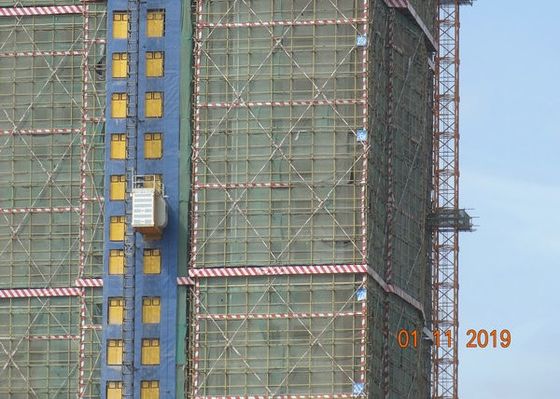

Rack And Pinion Man Material 400M Construction Site Lift SC200
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200, KP-B05, SC200/200, KP-B06 |
| Minimum Order Quantity | 1 Unit |
| Price | Negotiate in USD |
| Packaging Details | One 40'HQ container can load 1 unit of 50 meters high elevator |
| Delivery Time | 30 days afetr receipt of T/T or L/C |
| Payment Terms | T/T before shipment, L/C at sight |
| Supply Ability | 300 units per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Type | Rack And Pinion | Material | Q345B Steel |
|---|---|---|---|
| Apply Location | Construction Site, Plants, Etc. | Purpose | Vertical Transportation Of Materials And Persons |
| Color | Yellow Or Customized | Finishing | Sandblasting And Baking Finish |
| High Light | rack pinion man lift,400m Construction Lift |
||
Product Description

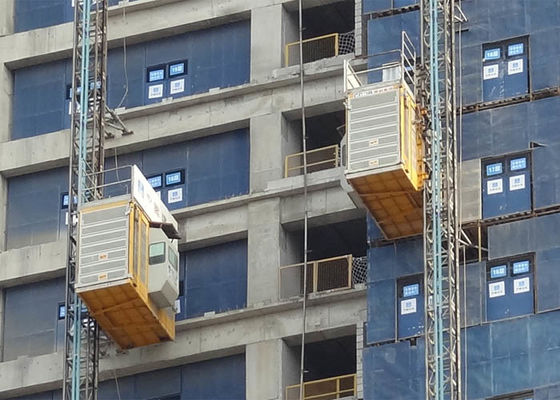

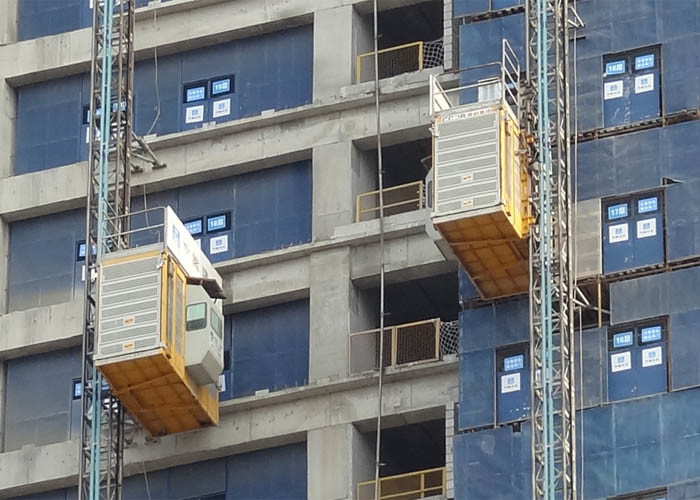

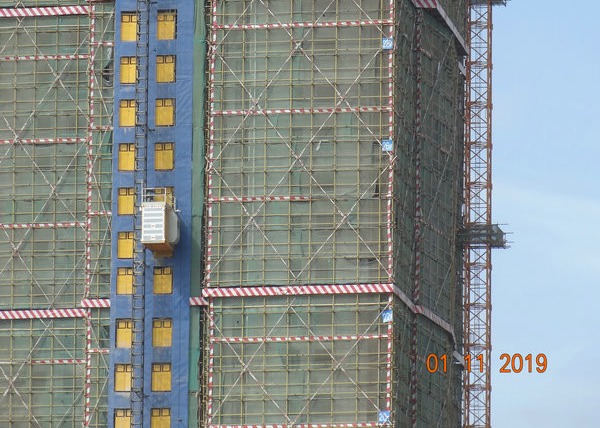

Rack And Pinion 400M Construction Site Lift
The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
Construction Site Lift advantage:
1. Adopting advanced technology both at home and abroad,SC series construction elevator is novel in design,resonable in structure,simple in operation,covenient in assembly and disassembly,safe and reliable in working.
2.The unit incorporates famous brand electric components and main parts in transmission mechanism.The steel structure is made of high-quality steel material and welded with CO2 gas shield welding.Surface paint is made with imported raw materials in brmiant ,long lasting colors.
3. The unit is provided with reliable safety interlock devices,safety switch,breakage protection switch,upper and lower limits and limit switches ,etc,Progressive dropping safety devices and safety protection hook are provided.
4. The safety design and configuration fully comply to national standards.
Construction Site Lift Features
Adopt own-make high efficient gear type reducers.
Types of exit doors are availble, including Flap Door as loading/unloading ramp.
Construction Site Lift Production
Main parts are made of Q355B cool roll steel plate, cut by Laser and processed by CNC machines and robots.
Enlarged and thickened main steel channel of the cage frame.
The fully welded cage roof edges make the cage roof waterproof.
Construction Site Lift Parameters
| Technical Data | KP-B05, KP-B06 Construction Site Lift |
| Payload capacity | 2,000 kg |
| Lifting speed | 0–36 m/min. |
| Max. lifting height | 400 m |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | VFC control |
| Engine power | 2x11 kw |
| Gearbox | Gear Type Reducer |
| Safety device type | Centrifugal Brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
