Electric Power Industry 450M Rack & Pinion Construction Site Lift
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Construction site lift rack and pinion type SC300BG MP-B15 SC300/300BG MP-B16 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Construction Site Lift | Design | Modular Design |
|---|---|---|---|
| Application | Electric Power Industry | Production | Standardized Production, Processed By CNC Machines, Laser, Robots In Assembly Line |
| Motor Control | VFC (Variable Frequency Control) | Height | 450M |
| Highlight | 450m Construction Site Lift,rack & pinion hoist |
||
Product Description

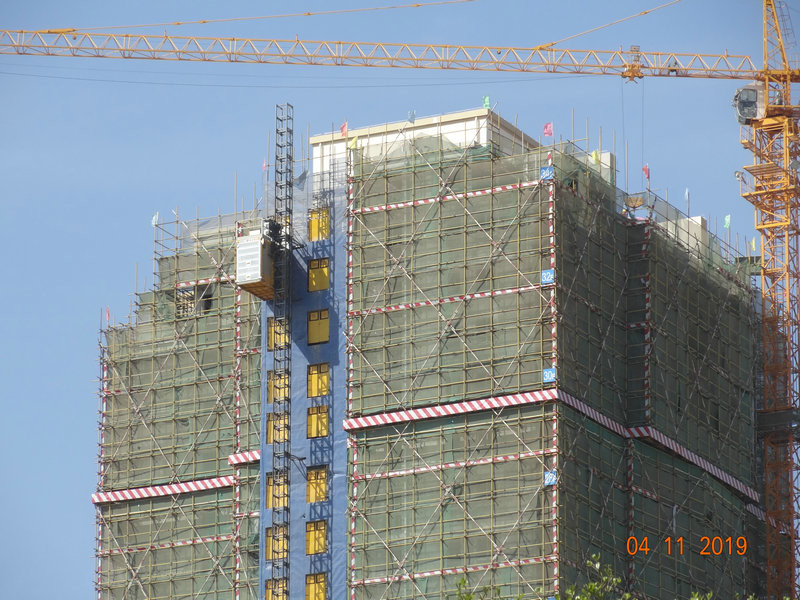

Electric Power Industry 450M Construction Site Lift
onstruction Site Lift Introduction:
It is a vertical handling machine dedicated for materials widely applied in building construction, industrial and mining, multi-storey workshop, warehouse, station, wharf, etc. It is convenient, efficient, and secure.
onstruction Site Lift Features and Advantages
* Adopt energy-saving helical reducers made specially for rack and pinion elevators, extremely strong, reliable and durable.
* Racks centering at mast reduce partial load torque of builders hoists, makes the construction hoists run more stably and smoothly.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.
* The integrated elevator car roof, which made by a steel plate with edges fully welded one time to complete, enhance hoist cage strength and ensure no water leakage.
* The additional big size third door at the cage side let the users to use fork trucks to load/unload extremely heavy and big size materials.
* Easy access to electrical panels of elevator for maintenance.
* Certified safety braking system of rack and pinion hoist.
* The material elevator car frame is enlarged and strengthened.
* The elevators are equipped with full set of safety facilities, including centrifugal brake, limit switches, Electromechanical interlocks.
* Frequency control unit (FC), with closed-loop, which gives the passenger and material hoists very smooth starting and stopping with low starting current and less wear and tear.
Certificate
TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.
onstruction Site Lift Technical Data
| Item & Article No. | SC300BG, MP-B15; SC300/300BG, MP-B16 onstruction Site Lift |
| Payload Capacity | 3,000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 3x23 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
