LED Ceiling Lamp 2000Kg Passenger And Material Hoist
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200(BZ) |
| Minimum Order Quantity | 1 set |
| Price | negotiate |
| Packaging Details | export package |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details

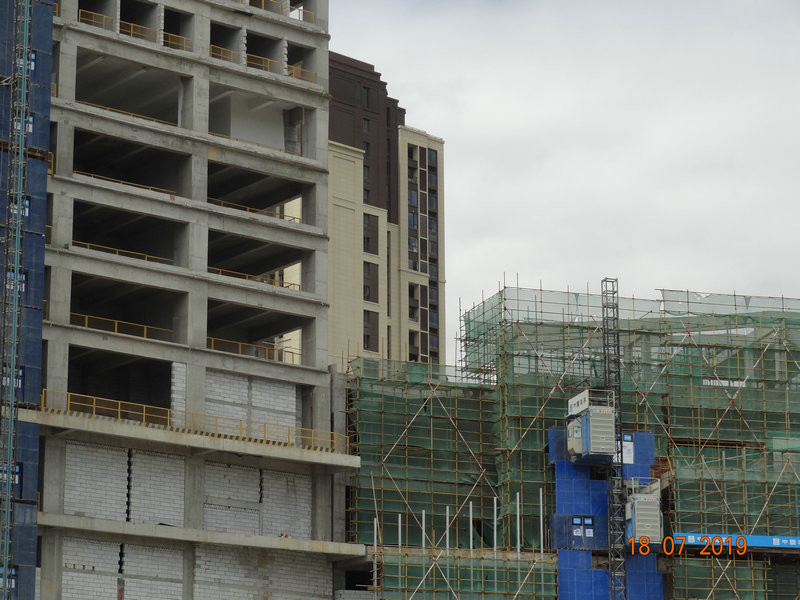

| Item | Passenger And Material Hoist | Application | Construction Site, Building Site |
|---|---|---|---|
| Purpose | Vertical Transportation Of Man And Materials In Construction Site Or Building | Material | Q345B Cool Roll Steel Plate |
| Color | Yellow | Name | Construction Hoist Elevator |
| Highlight | 2000Kg Material Hoist,2000Kg Passenger Hoist |
||
Product Description
LED Ceiling Lamp Payload Capacity 2000Kg Passenger And Material Hoist
Passenger And Material Hoist Safety
We have gained many patents on the design of construction hoist lift and we have optimized several critical components related to safety, like transmission mechanism, safety hook, installation platform for anti-fall device, back gear, idler gear (anti-shearing), and counterpoise slide rail of the mast section. In this way, not only the high safety requirement for lifting people in ultra-high-rise construction is met but also the stability and riding comfort are improved.
In addition, there are some other safety devices for selection, such as micro-controlled automatic deceleration device for docking, wireless floor paging device, overload alarm, etc.
Passenger And Material Hoist Standard Configuration
There is a small crane for conenient assembly of the construction lift.
Available in single or twin hoist cage configuration.
Frequency control makes the construction hoists starting and stopping very smoothly, with low starting current and much less wear and tear.
Manual or Automatic Controls of the hoist is optional.
There is LED lighting inside construction elevator car.
Lighting inside construction elevator car is LED ceiling lamp
Passenger And Material Hoist Optional Configuration
* Rack and pinion elevator cage flap door as loading/unloading ramp.
* Elevator car 'C' door for convenient loading/unloading.
* Sliding Contact Line (Integrated Conductive Rail or Busbar) specially for rack and pinion lifts.
Passenger And Material Hoist Parameters
| Technical Data | KP-B07, B08 |
| Payload Capacity | 2,000 kg |
| Lifting Speed | 0–46 m/min. |
| Max. Lifting Height | 450 m |
| Cage Width (internal) | 1.5 m |
| Cage Length (internal) | 3.2 m |
| Cage Height (internal) | 2.35 m |
| Motor Control | FC control |
| Engine Power | 2x15 kw |
| Gearbox | Helical Reducer |
| Safety Device | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast Section | Square column 650*650*1508 mm with bolted rack |
| Rack Module | 8 |
