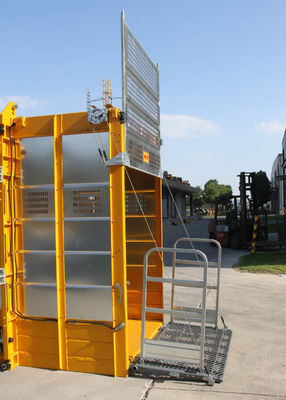

100m Rack Pinion Type Construction Site Hoist TUV Certificated
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Construction Site Hoist Rack Pinion Type VFD Single Cage SC100(BZ) KP-B01 |
| Minimum Order Quantity | 1 set |
| Price | In negotiate |
| Packaging Details | A 40'HQ container can load one set of 60 meter high hoist |
| Delivery Time | 25 days after receipt of down payment |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | Construction Site Hoist Rack Pinion Type VFD Single Cage SC100(BZ) KP-B01 | Application | Construction Site, Building Site, Bridges, Chimney, Plants, Etc |
|---|---|---|---|
| Design | According To European Standard And Truly Modular | Production | Standardized Production, Processed By CNC Machines, Laser, Robots In Assembly Line. |
| Material | Q345B Steel | Finishing | Sandblasting And Painted, Galvanised |
| Highlight | TUV Construction Site Hoist,Rack Pinion Type Construction Site Hoist,100m rack and pinion hoist |
||
Product Description
Products Description
|
SC100BD CONSTRUCTION MATERIAL HOIST FOR LIFTING PASSENGER MATERIAL Single/Galvanied/inverter provide operation speed:low,middle,high material hoist accessory is optional according to client request |
|
| model | SC200/200BD |
| height | 100m |
| Payload Capacity: | 1x1000 |
| speed | 0-40m/min |
| cage | Cage nos.: SINGLE Driving Cabin: W/O Internal Dims.: 3.2mLx1.5mWx 2.3mH Wall: Alu. Pannel + Punched hole Alu.plate Finish: Painting |
| mast section | Dims.: 650mm x 650mm x 1508mm/100mx4.5mm Finish :Galvanied |
| VFT | 2x37KW,VEICHI |
| Power supply | 60HZ/380V, 3PH |
| safety device | SAJ40-1.2 |
| cable | 3x16+2x10, 110mx2 |
| remard | Tie-in,windproof, Cable Trolley, Erection Jib, Base Enclosure and Overload Device are included. |
Product parameter
1. Low operating cost but high efficiency;
2. Simplicity in operation;
3. High degree of safety;
4. Long durability;
5. Low energy consumption.
6. CE, ISO and GOST certificates.
Features of SC200/200 Construction Elevator
1. It is equipped with fully safety devices to guarantee the safe working;
2. Stable running and comfortable adaptability;
3. The transmission system adopts two-drive motors and three-drive motors. Planar double-eveloping worm gear reducer is adopted ensuring the high efficiency, max payload and long service life;
4. Simple electrical control system, easy operation and convenient maintenance withlow failure rate.
