With Deceleration Device 2000kg Construction Site Hoist For Construction Usage
| Place of Origin | Xiamen, China |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200 |
| Minimum Order Quantity | 1 unit |
| Price | Negocite |
| Delivery Time | 25 days after down payment |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Elevator Door | Vertical Sliding Door | Application | Construction Usage |
|---|---|---|---|
| Main Girder Form | Single Mast | Moving Type | Rack And Pinion |
| Lift Mechanism | Rack And Pinion | Deceleration Device | With Deceleration Device |
| 3.2m*1.5m*2.35m | 2000kg | Cage Top Crane Type | Removeable |
| Highlight | Vertical Sliding Door Construction Site Hoist,Single Cage 2000kg Construction Site Hoist,2000kg Rack Pinion Construction Hoist Elevator |
||
Product Description

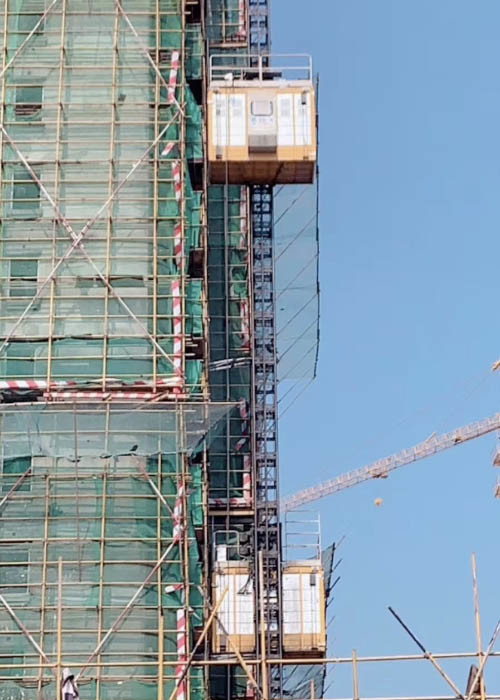

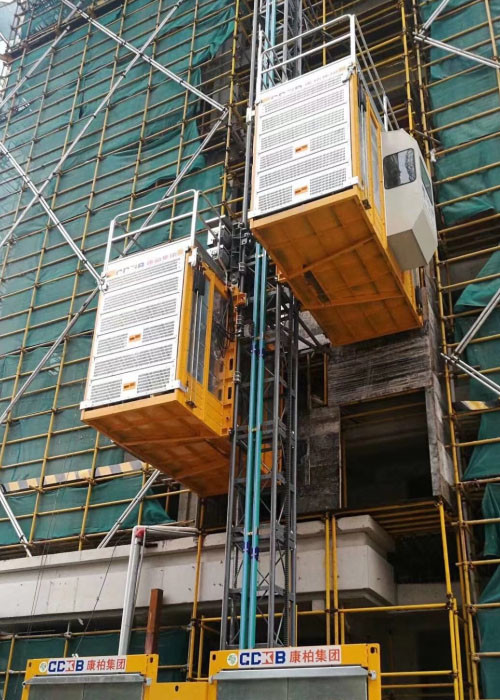

With Deceleration Device 2000kg Construction Site Hoist For Construction Usage
Description
KANGBO provides a whole serial passenger and material hoist in both single and twin cage to the customers, the capacity of cage ranges from 1000kg, 1200kg, 1500kg, 2000kg, 2700kg, to 3200kg, and with direct motor driven and frequency conversion driven to reach the speed of 36 m/min, 40 m/m, 54 m/m, 63m/min, 88 m/m and 96m/min, the maximum working height is up to 450 meters. And KANGBO Machinery Group also provides the customized size of cage to satisfy the special demand from customers.
The electrical components and the frequency converter are from Schneider - international famous brand. KANGBO also provide the own make and own patent gearbox for our customer's specific requirement.
With the advance facilities and skills, clean and environment-friendly workshop, KANGBO manufactures the reliable, safe and high performance construction machinery and provide the high efficient vertical access solution for the global customers.
Product Info
| NO. | Description&Details | |
| 1 | Cage | Single cage (With operation Cabin or with no Cabin) |
| 2 | Cage Dimension | 3.2×1.5×2.35m ( Changeable when required) |
| 3 | Rated loading capacity | 2000kg per Cage |
| 4 | Rated Lifting speed | 0-36m/min |
| 5 | Max Erection height | 450m |
| 6 | Motor Power | 2×11kw |
| 7 | Mast section size | 650×650×1508mm (or 800*800*1508mm) |
| 8 | Mast section weight | 2000kg (Single Rack) |
| 9 | Wall-tie adjust length&Qty | 1 pieces/ 9m (6 mast) , The Length and Qty can be changeable when required. |
| 10 | Main electrical system | Schneider |
| 11 | Inverter system | Schneider |
Special disign for Cage
1. Bottom and Cage roof are intensified design
2. Bottom and the roof are full symmetry
3. The structure parts are processed by CNC machines and tools, assembly welded by robots
4. The wall around cage can be fixed by galvanised steel plate.
5. Surface Treatment: Blasting, Baking finished
Applications
Building construction, Residence construction, Bridge construction, Power station construction, Dam construction, Miner project, and etc.
Competitive Advantage
EU standardized design and production, approved by TUV.
High level quality control system
Reliable quality and very good finishing
Minimum maintenance job and cost in usage
