Sc200/200 Construction Elevator Passenger And Material Hoist Max 450m Height

  • Sc200/200 Construction Elevator Passenger And Material Hoist Max 450m Height
  • Sc200/200 Construction Elevator Passenger And Material Hoist Max 450m Height
  • Sc200/200 Construction Elevator Passenger And Material Hoist Max 450m Height
Place of Origin Xiamen, China
Brand Name KANGBO
Certification TUV
Model Number SC200/200
Minimum Order Quantity 1 unit
Price Negocite
Packaging Details A 40'HQ container can load one set of 60 meter single cage hoist
Delivery Time 25 days after down payment
Payment Terms L/C, T/T

Contact me for free samples and coupons.

WhatsApp:0086 18588475571

Wechat: 0086 18588475571

skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Application Veritical Transportation In Construction Design Modular Design
Drive Type Rack And Pinion Mast Type Square Column With Bolted Rack
Material Q355B Steel Standard EU Regulations
Finish Sand Blasting And Paint, Galvanised Color Yellow
Highlight

Modular Passenger And Material Hoist

,

Passenger And Material Hoist 450m Height

,

Modular Double Cage Construction Elevator
Leave a Message
Product Description

2 tons Sc200/200 Construction Lift Passenger and Material Hoist Max 450m Height



Capacity: 2000kg Cage: Double Cage
Speed: 0-63 M/min Cage Dimension: 3.2*1.3*2.25
Max Installation Height: 450m Power: 380v 50Hz



Details Specification

Item Construction hoist
Model SC200/200
Rated capacity/per cage 2000kg
Lifting speed 0-63m/min
Cage size 3.2*1.5*2.35m
Motor power 3*15kw
Speed ratio 1:18
Invertor Power 55 kw
Safety device SAJ40-1.6
Mast section size 0.65*0.65*1.508m
Max. Installation height 450m
Cable type Cable Drum/Busbar

Other models we have:

Characteristic Model Rated Loading Lifting Speed Motor Power Inverter Power
Twin Cage SC150/150 2×1500kg 0-54m/min 2×11 Kw 30 Kw
SC200/200 2×2000kg 0-36m/min 2×11 Kw 30 Kw
SC200/200 2×2000kg 0-46m/min 2×15 Kw 37 Kw
SC200/200 2×2000kg 0-63m/min 3×15 Kw 55 Kw
SC200/200 2×2000kg 0-96m/min 3×18.5 Kw 75 Kw
SC320/320 2x3200kg 0-46m/min 3x15 Kw 55 Kw
Single Cage SC150 1500Kg 0-34m/min 2×9Kw 22Kw
SC200 2000kg 0-45m/min 3×12Kw 37 Kw
SC200 2000kg 0-34m/min 2×12Kw 37 Kw
SC200 2000kg 0-63m/min 3×15 Kw 45 Kw
SC200 2000kg 0-96m/min 3×18.5 Kw 75 Kw
SC320(BZ) 3200kg 0-46m/min 3x15 Kw 55 Kw


1T 0-63/min double cages ernergy saving Construction elevator

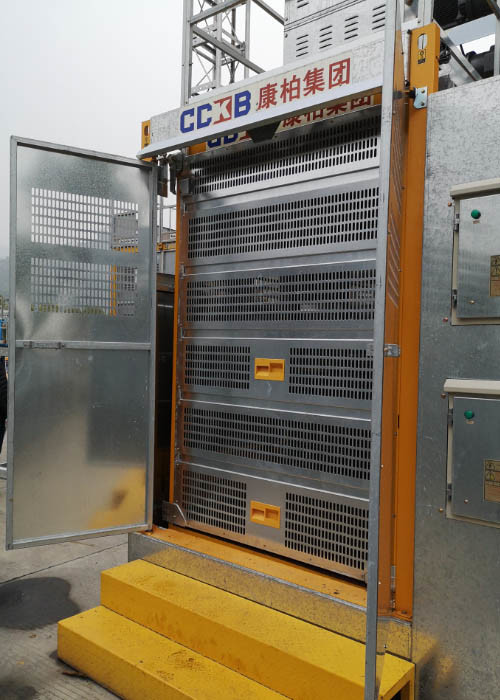

  • Construction elevator is a vertical transporting lifting tool for building construction, such as houses, bridges. It is safe and efficient to lift materials and passenger to different floors. Loading Capacity range is 1000kg-3200kg.
  • 1508*60*40 Racks and M8 pinions are applied to help the construction hoist climb the mast stably and efficiently and sefely.

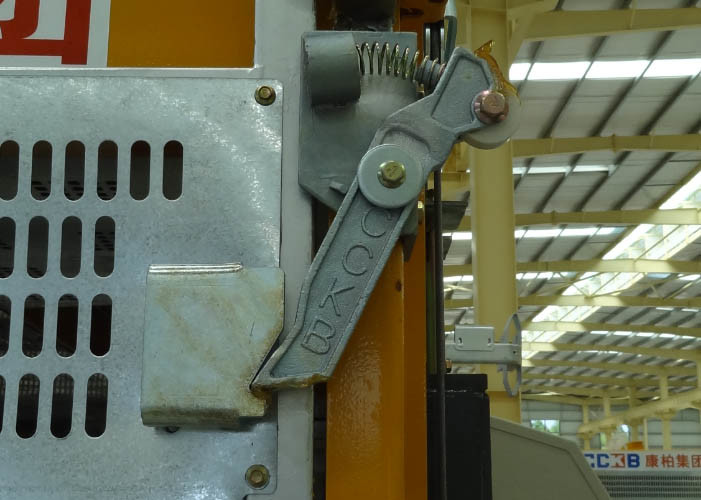

  • Mufti-equipment for safety: Safety device, slow down limit switches, up & down limit switch, Door limit switch, overload protector.
  • Wireless calling system for user.
  • Separate operator cabinet with comfortable space for operator. Users can also make choose without operater cabinet.
  • Soft start and stop, with Schneider inveter VFD control. The speed can be set at 0-96m/min as required without limitation.
  •
