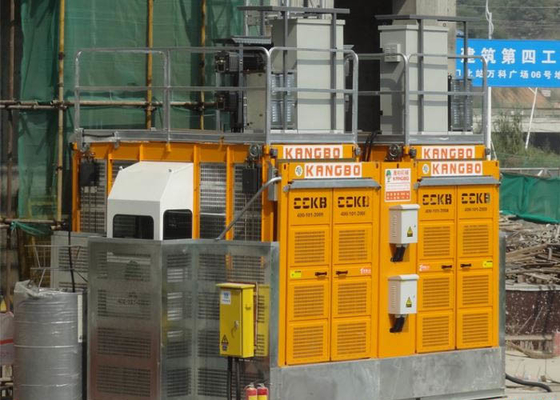

SC200/200 FC Motor Rack Pinion Lift For Construction Site Lifting Speed 0–60 M/Min
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Rack and pinion hoist SC200(BG) KP-B09 SC200/200(BG) KP-B10 |
| Minimum Order Quantity | 1 set |
| Price | in USD |
| Packaging Details | export package |
| Delivery Time | 250-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | SC200 Construction Site Lift | Application | Transportation Of Man And Material At Building Site |
|---|---|---|---|
| Material | Q355B Steel Plate | Processing | Cut By Laser, Processed By CNC Machines In Tool Fixtures |
| Motor Control | Frequency Control (FC) | Invertor Brand | Schneider |
| Finishing | Sandblasting And Painted, Galvanised | Color | Yellow |
| High Light | FC Motor Rack Pinion Lift,Construction Site Rack Pinion Lift,60M/Min Construction Site Hoist |
||
Product Description
SC200/200 FC Motor Rack Pinion Type Lift For Construction Site Lifting Speed 0–60 M/Min
Design
It is the truly modular design, so the lift's drive devices and cages are generic and interchangeable.
Multiple choice of construction lifts cage doors or ramps is available.
The modular and standardizing system makes the construction elevators be efficient, safe, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
Production and Materials
Design and manufacture strictly according to European standard.
The passenger and material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q355B high strength steel.
The construction lift cage roof is made by a full steel plate, and the edges are totally welded, to ensure no water leakage and high strength.
Technical Data
| Item & Article No. | SC200(BG) KP-B09 SC200/200(BG) KP-B10 |
| Payload capacity | 2,000 kg per cage |
| Lifting speed | 0–60 m/min. |
| Max. lifting height | 450 m |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 2x23 kw per cage |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Mast section | square column 650*650*1508 mm with bolted rack |
| Rack module | 8 |
