Rack And Pinion Passenger Material Lift SC200BD SC200/200BD 0-36 M / Min
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Construction Site Rack and Pinion Hoist SC200BD MP-B05 SC200/200BD MP-B06 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate in USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item | Construction Site Rack And Pinion Hoist SC200BD MP-B05 SC200/200BD MP-B06 | Application | Vertical Transportation Of Man And Materials At Construction Sites |
|---|---|---|---|
| Design | European Regulation | Material | Q355B Steel |
| Production | As Per EN 12159:2012, EN 60204-1:2006/A1:2009. | Color | Yellow |
| Motor Control | FC | Finish | Sand Blasting And Paint |
| High Light | Rack Pinion Passenger Material Lift,36M/Min Passenger Material Lift,Passenger Rack And Pinion Hoist |
||
Product Description
Rack And Pinion Passenger/Material Lift SC200BD, SC200/200BD 0-36 M / Min MP-B05, MP-B06
Features and Advantages
* The modular and standardizing design makes the Kangbo construction lifts be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
* The construction hoist runs without vibration or trembling. These man and material lifts start and stop without surging or jerking.
* This passenger and material elevator is reliable with very little breakdown and is durable with very long work-life.

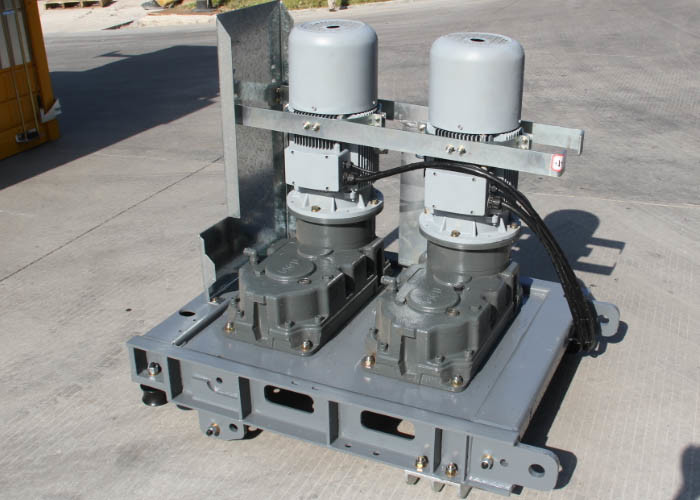

* Adopt energy-saving helical reducers of extremely strong, reliable and durable.
* Racks centering at mast reduce offset load force of the builders hoists drive, makes the construction hoists run more stably and smoothly.
* Applying non-eccentric rollers, make the installation of construction site elevators be faster and easier, with much less error.

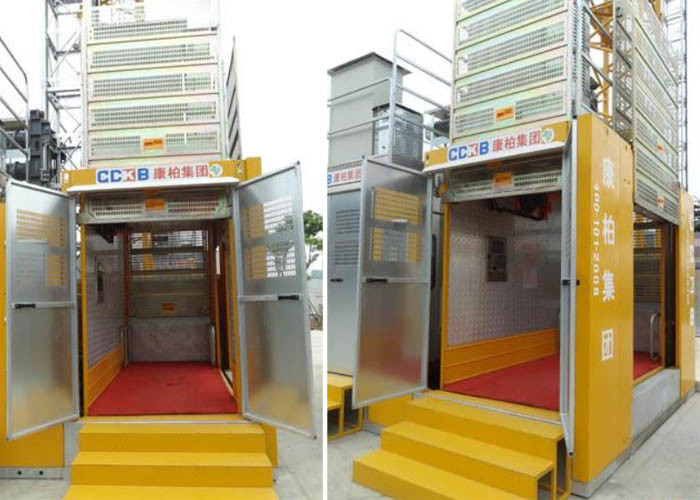

* The integrated elevator car roof, which made by a steel plate with edges fully welded one time to complete, enhance hoist cage strength and ensure no water leakage.
* The third door at the long side of cage let the users to use fork trucks to load/unload extremely heavy and/or big size materials.
* Certified safety braking system of rack and pinion hoist.
* The material elevator car frame is enlarged and strengthened.
* The elevators are equipped with full set of safety facilities, including centrifugal brake, limit switches, Electromechanical interlocks.
Certificate
TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009.
Technical Data
| Item & Article No. | SC200BD, MP-B05; SC200/200BD, MP-B06 |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–36 m/min. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 2x11 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack Module | 8 |
