High Speed Heavy Load Building Site Hoist Temporary Construction Elevators
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | Construction site hoist rack pinion high speed heavy payload SC250/250(BG) KP-B20 |
| Minimum Order Quantity | 1 set |
| Price | In USD |
| Packaging Details | Export package |
| Delivery Time | 30 days after receipt of L/C or down payment |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | Construction Site Rack And Pinion Type Hoist High Speed Heavy Payload SC250/250(BG) | Model | SC250/250(BG) KP-B20 |
|---|---|---|---|
| Purpose And Uses | Vertical Transportation Of Man And Materials In Construction Site Or Building Site | Design | According To European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009 |
| Material | Q345B Steel | Production | Processed By CNC Machines, Laser, Robots In Assembly Line |
| Motor Control | FC (frequency Control) | Finishing | Sand Blasting And Paint/galvanised |
| High Light | Q345B Steel Building Site Hoist,Frequency Control Building Site Hoist,80m/min Temporary Construction Elevators |
||
Product Description

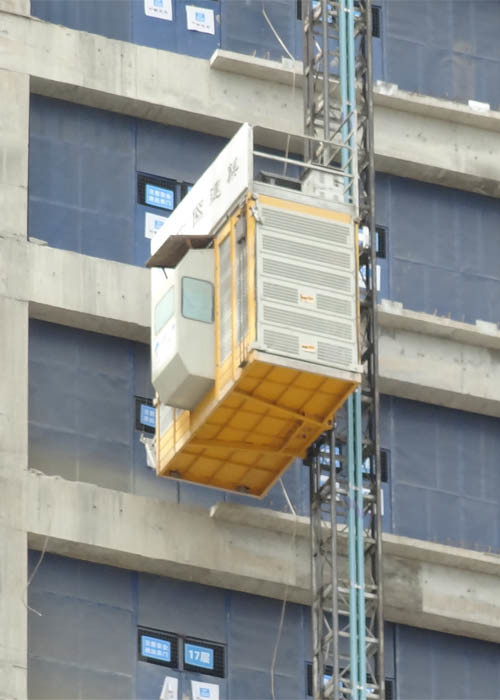

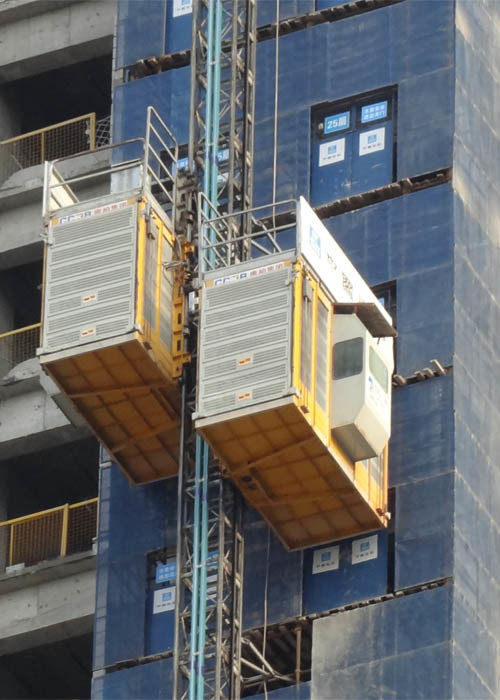

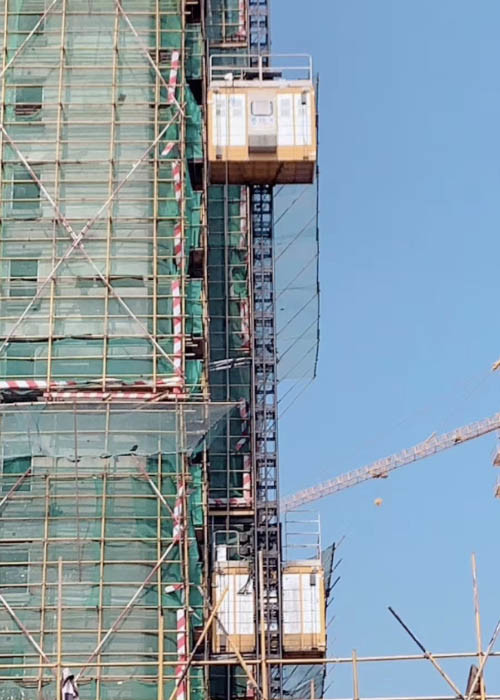

High Speed Heavy Load Building Site Hoist , Temporary Construction Elevators
Features and Advantages
* The modular and standardizing system makes the construction lifts be flexible, efficient, safe, low ownership cost, making them the best choice for both construction and rental companies.
* The material and man lift runs smoothly. It starts and stops without surging or jerking.
* These passenger and material elevators are reliable with very little breakdown and are durable with very long work-life.
* Adopt energy-saving helical reducers made specially for rack and pinion lifts, extremely strong, reliable and durable.
* Racks centering at mast reduce offset load torque, makes the construction hoists run more stably and smoothly.
* Applying non-eccentric rollers, make the installation of construction elevators faster and easier, with much less error.
* The integrated elevator car roof, which made by a steel plate with edges fully welded, enhance hoist car strength and ensure no water leakage.
* Easy access to electrical panels of elevator for maintenance.
* Certified safety braking system of rack and pinion hoist.
* The material elevator car frame is enlarged and strengthened.
* The hoists are equipped with full set of safety facilities, including centrifugal brake, limit switches, electromechanical interlocks.
* Frequency control unit (FC), with closed-loop, which gives the passenger and material hoists very smooth starting and stopping with low starting current and less wear and tear.
Technical Data
| Item & Article No. | SC250/250(BG) KP-B20 |
| Payload Capacity | 2,500 KG per Cage |
| Lifting Speed | 0–80 m/min with full load |
| Max. Lifting Height | 450 m |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor Control | Frequency Control |
| Engine Power | 3x38 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack Module | 8 |
| Art. No. | Model | Payload (KG) |
Lifting Speed (m/min) | Motor Power (KW) | Invertor Power (KW) | Max Height (M) | Invertor Brand | Motor | Gear Box | Voltage & Frequency |
| KP-B19 | SC250(BG) | 2500 | 0-80 | 38×3 | 132×1 | 450 | Schneider | Chinese | Helical Gear Box | 380–500 V, 50 or 60 Hz, 3 Phase |
| KP-B20 | SC250/250(BG) | 2500 | 0-80 | 38×3×2 | 132×2 | 450 | Schneider | Chinese | Helical Gear Box |
380–500 V, 3 Phase |
