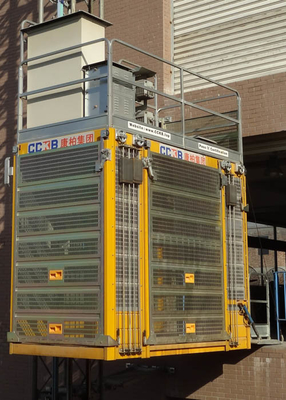

SC300 SC300/300 Rack And Pinion Lift With Third Door At Long Side Of Cabin
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Building Site Rack Pinion Type Lift SC300BG MP-B15, SC300/300BG MP-B16 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Item Name | Building Site Hoist Rack And Pinion Elevator | Design | As Per European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009. |
|---|---|---|---|
| Material | Q355B Steel Plate | Production | Standardized Production, Processed By CNC Machines, Laser, Robots In Assembly Line |
| Drive Mode | VFD (Variable Frequency Drive) | Finishing | Sandblasting, Painted Or Galvanised |
| High Light | Rack And Pinion Lift SC300,VFD Rack And Pinion Lift,Building Site Rack And Pinion Hoist |
||
Product Description
Rack And Pinion Lift SC300, SC300/300 With Third Door At Long Side Of Cabin
Configuration
A small crane for conenient assembly of the construction lift.
There is the additional 'C' door at the long side of cab for convenient loading/unloading.
Single or twin lift cabin configuration is available.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the lift is optional.
Lighting inside this construction elevator car is LED ceiling lamp
The construction material hoist cage roof doors are equipped with electromechanical interlocking.
Equipped with drop test facility with remote control.
A frequency control unit (FC), with closed-loop, be equipped.
Technical Data
| Item & Article No. | SC300BG, MP-B15; SC300/300BG, MP-B16 |
| Payload Capacity | 3,000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 250/400 m* |
| Cage Width (Internal) | 1.5 m |
| Cage Length (Internal) | 3.2 m |
| Cage Height (Internal) | 2.35 m |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 3x23 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
