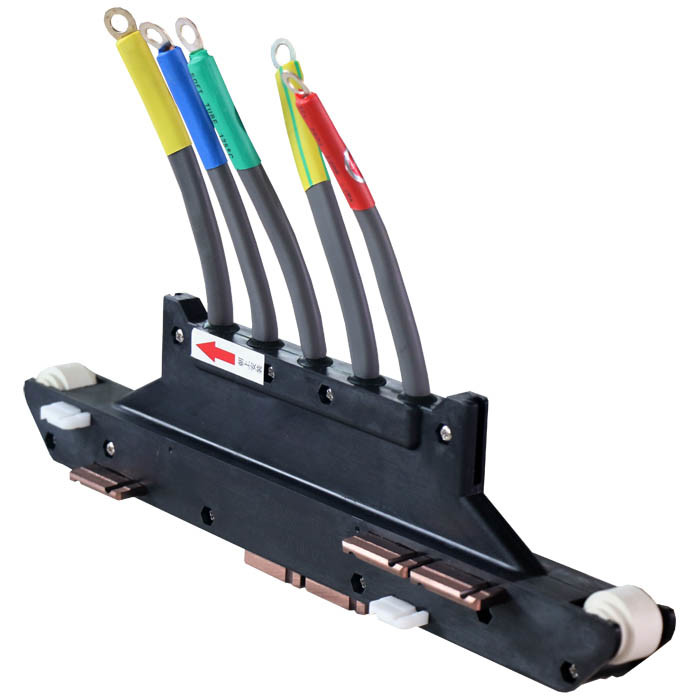

Current Collector Of 16sqmm Busbar - Slide Contact Line For Construction Machinery
| Place of Origin | CHINA |
|---|---|
| Brand Name | DABIAO |
| Certification | CE, CCC |
| Model Number | Current Collector of 16 s.q.mm Slide Contact Line |
| Minimum Order Quantity | 1 pc |
| Price | Negotiate |
| Packaging Details | carton |
| Delivery Time | 5-8 days |
| Payment Terms | T/T |
| Supply Ability | 15,000 pcs per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Current Collector Of Slide Contact Line | Application | Getting Power From The Conductor. |
|---|---|---|---|
| Material | Plastic, Metal Graphite | Production | As Per CE Regulation |
| Highlight | Construction Machinery Slide Contact Line,Current Collector Slide Contact Line,16sqmm Busbar Slide Contact Line |
||
Product Description
Current Collector Of 16sqmm Busbar - Slide Contact Line For Construction Machinery
Outline

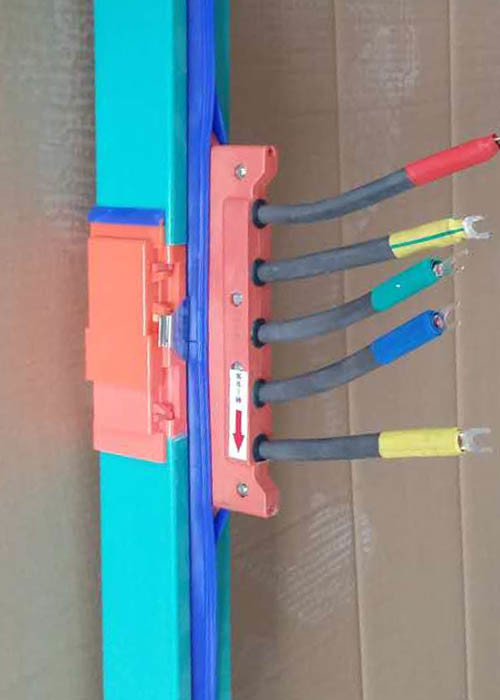

The Current Collector operates synchronously with the moving hoist lift, and the power is obtained from the conductor at any time and/or position to make the elevator moving continuously.
It is composed of Conductive Carbon Brushes, Balance Brushes, wires and shell.
Technical Data
| Technical Data Sheet | ||
| SR. NO. | ITEM | PARAMETER |
| 1 | Article Number | JDHCX-16A-07 |
| 2 | Rated Current | 50A |
| 3 | Rated Voltage | 380V |
| 4 | Weight | 0.9kg |
| 5 | Running Speed | ≤ 100 m/min |
| 6 | Rated Current of Cable Connected | 80A |
| 7 | Applicable Slide Contact Line Model | 16 mm² Slide Contact Line System |
