Rack And Pinion Type Mast Climbing Elevator SC300, SC300/300 60M/Min Speed
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Rack and pinion type elevator SC300BG, SC300/300BG |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Construction Site Rack Pinion Elevator | Application | Vertical Transportation At Construction Site |
|---|---|---|---|
| Design | According To European Regulations And Modular | Material | Q355B Steel |
| Production | As Per EN 12159:2012, EN 60204-1:2006/A1:2009 | Color | Yellow |
| High Light | Mast Climbing Elevator SC300,Rack And Pinion Elevator 60M/Min,Rack Pinion Mast Climbing Elevator |
||
Product Description

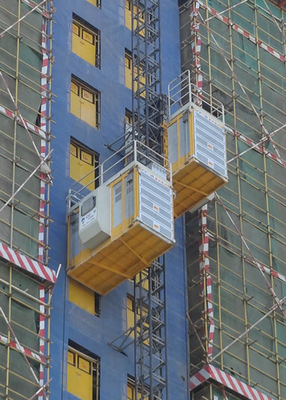

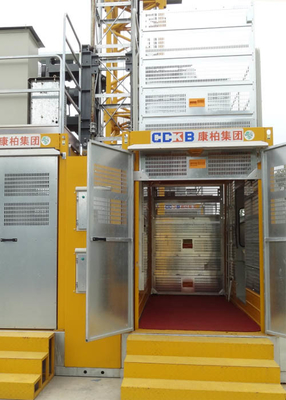

Rack And Pinion Type Mast Climbing Elevator SC300, SC300/300 60M/Min Speed
It is the truly modular rack and pinion hoist design, so the elevator drive devices and cars are generic and interchangeable.
Multiple choice of construction lifts car doors or ramps is available.
The modular and standardizing system makes the Kangbo rack and pinion elevators be flexible, efficient, low ownership cost, making them the best choice for both construction and rental companies.
Main structure frame are made of 16Mn and Q355 high strength cold roll steel plate, cut by laser, process by CNC machines in tool fixtures, welded by robots.
Technical Data
| Item & Article No. | SC300BG; SC300/300BG |
| Payload Capacity | 3,000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 450m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | Flap type discharge door is available |
| Motor Control | FC (Frequency Control) |
| Engine Power | 3x23 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
