Rack And Pinion Heavy Payload Construction Site Elevator SC250BG KP-B19
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC250BG KP-B19 |
| Minimum Order Quantity | 1 set |
| Price | In U S dollar |
| Packaging Details | Export package |
| Delivery Time | 30 days afterd receipt of down payment or L/C |
| Payment Terms | T/T, L/C |
| Supply Ability | 300 set |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | Construction Site Rack And Pinion High Speed Heavy Payload Elevator | Model | SC250(BG) KP-B19 |
|---|---|---|---|
| Application | Vertical Transportation Of Man And Materials In Construction Sites | Work Mode | Mast Climbing Pinion Drive |
| Motor Control | Variable Frequency Drive (VFD) | Design | Modular Design And According To EU Regulations |
| Material | Q355B Steel | Finishing | Sandblasting And Paint, Galvanised |
| High Light | SC250BG Construction Site Elevator,Rack And Pinion Construction Elevator,Q355B Steel Construction Site Elevator |
||
Product Description

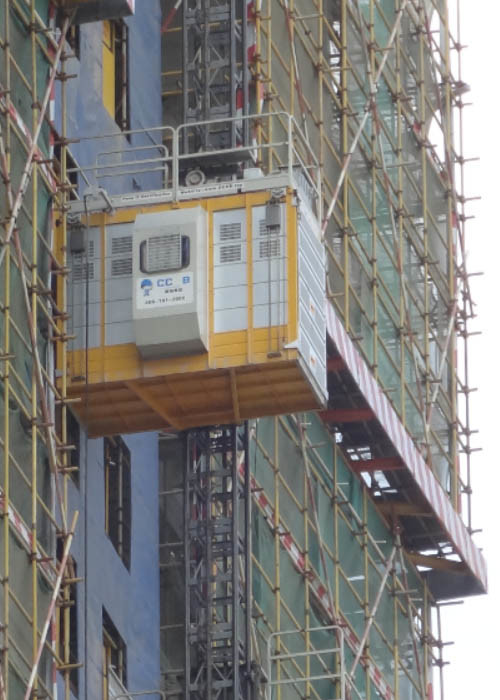

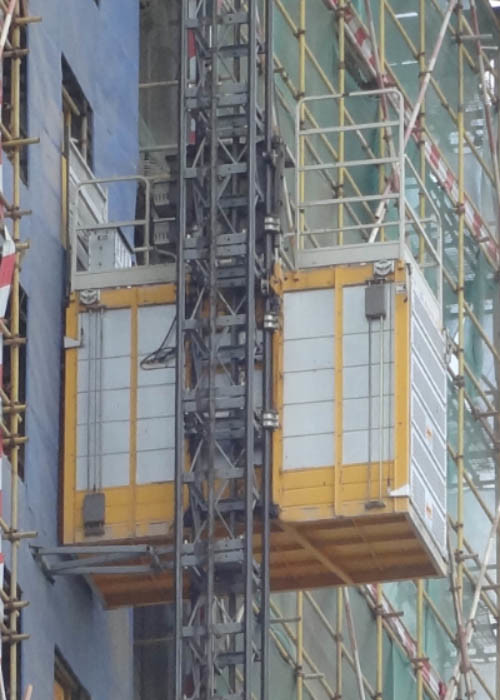

Construction site hoist rack and pinion high speed heavy payload SC250BG KP-B19
Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine processing of lifts parts and components, and assembly line production.
The construction elevator components are standardized and universal.
Main structure frame are made of 16Mn and Q355B high strength cold roll steel plate, cut by laser, process by CNC machines in tool fixtures, welded by robots.
The construction lift cage roof is made of one piece of steel plate, and its edges are totally welded by robot, to ensure never water leakage and high strength of the elevator car.
Standard Configuration
There is a small crane for conenient installation of the elevator.
In single cage configuration.
The construction site rack and pinion type elevators are Variable Frequency Drive (VFD), with low starting current, very smooth starting/stopping and so there is much less wear and tear.
Technical Data
| Item & Article No. | SC250(BG) KP-B19 |
| Payload Capacity | 2,500 KG per Cage |
| Lifting Speed | 0–80 m/min with full load |
| Max. Lifting Height | 250/450 m* |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Motor Control | FC control |
| Engine Power | 3x38 KW per Cage |
| Gearbox | Helical Reducer |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
| * Increased lifting height on request. 400 m with step-up/step-down transformer. | |
| Optional Configuration | ||
| Power Supply | Slide Contact Line System (Busbar) | |
| Floor Selection | Multi-functional Control System (Floor selector, Automatic Landing, Error Detection and Display, etc.) | |
| TUV proved according to European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009. | ||
