Construction Site Elevator SC200 FIC-07 Rack and Pinion Hoist Fully Intelligent Control construction lift
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Max Lifting Height | 450m | Gearbox | Helical Gearbox |
|---|---|---|---|
| Drive Mode | Cage Top | Keywords | Construction Site Elevator |
| Safety Features | Emergency Stop Button, Overload Protection, Safety Door Lock | Mast Section | Painted Or Hot Dipped Zinc |
| Load | 2 Ton | Mechanism | Rack And Pinion |
| Model | SC200/200 | Installation | On-site |
| Cage Load Capacity | 2, 000kg | Finishing | Sand Blasting, Painted, Galvanised |
| Inverter Brand | HENGBANG | Dimensions | Varies Based On Model |
| Type | Elevator | Operation | Fully Intelligent Control System |
| Highlight | SC200 Construction Site Elevator |
||
Product Description

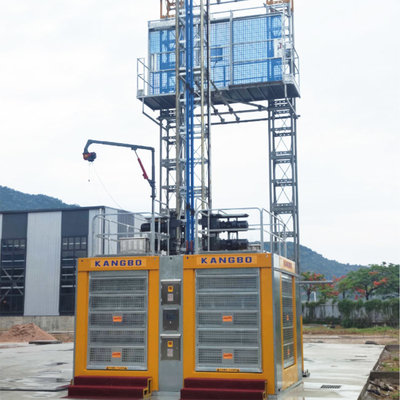

Construction Site Elevator SC200 FIC-07 Rack and Pinion Hoist Fully Intelligent Control construction lift
Equipped with Fully Intelligent System, with functions including floor selection, floor calling and automatic cage landing/stop, automatic open/close cage doors and floor doors, fault detect, display and alarm, personnel biologic recognition and permissions, etc.
* Apply high efficiency and long work life gear reducers.
* Racks set in the middle of mast section to reduce Partial load torque of cages and make the machine run more stably
and smoothly.
*Apply non-eccentric rollers. No need to adjust rollers after installation. That means faster installation and
less error caused by installation.

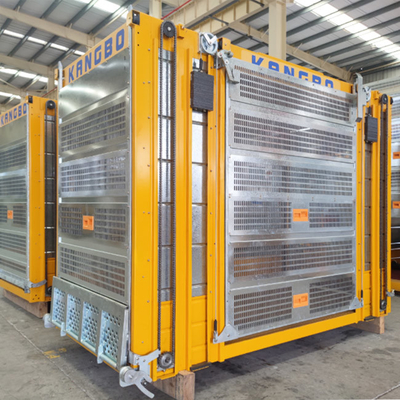

*Integrated cage roof. Cage roof is made by a full plate of tread plate welded one time to complete, with high
strength and no water leakage in rainy days.
* Flap door for loading/unloading ramp
* Additional 'C' door at cage side for convenient loading/unloading.
* Interior Car Lighting
* Base-Level Alarm
* Interlocked roof hatch
* Drop test facility with remote pendant
* Be equipped with a frequency control unit (FC), with closed-loop, which gives very smooth starting and stopping with
low starting current and less wear and tear.
* Composite Power & Control Cable, or Sliding contact line (Integrated Conductive Rail or Busbar).
* Easy access to electrical panels for maintenance
* Certified safety brake system
Technical Data
| Item & Article No. | SC200, FIC-07 |
| Number of Cages | Single Cage |
| Payload Capacity | 2,000 KG |
| Lifting Speed | 0–46 meter/minute, full loaded |
| Max. Lifting Height | 250 m / 450 m * |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter |

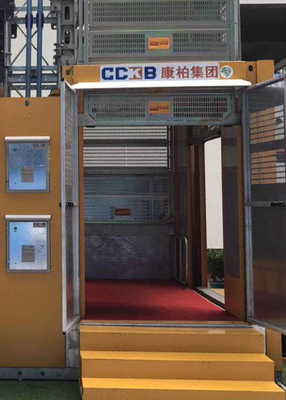

| Cage Doors | Modularized Entrance Door and Discharge Door, and Third Door at the long side of cage |
| Engine Power | 2*15 KW |
| Motor Control | Frequency Control (FC) |
| Invertor Power (KW) | 1*37 KW |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
