Revolutionize Your Construction Site with the VFD Rack And Pinion Construction Hoist Lift SC320/320
| Place of Origin | China |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC320/320 |
| Minimum Order Quantity | 1set |
| Price | USD |
| Packaging Details | Shipped by containers |
| Delivery Time | 30 days after receipt of down payment |
| Payment Terms | L/C, T/T |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Lift Mechanism | Rack And Pinion | Voltage | 380V |
|---|---|---|---|
| Frequency | 50Hz | Hoist Speed | 0-63m/min |
| Maximum Load Capacity | 3200kg | Cage Size | 3.2(L)*1.5(W)*2.35(H) Meters |
| Motor Control | FC (frequency Control) | Design | As Per EU Standard |
| Power Source | Cable, Busbar | Mast Type | Square Column With Bolted Rack |
| Cage Dimension | 3.2m X 1.5m X 2.35m |
Product Description

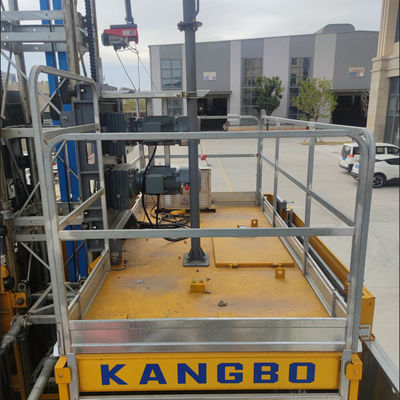

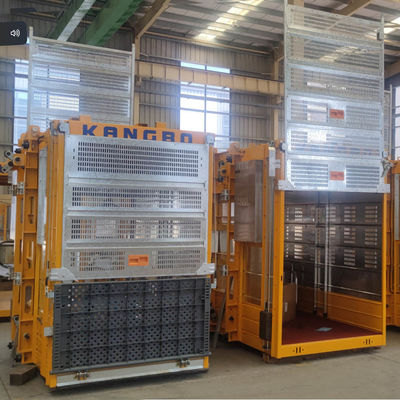

VFD Rack And Pinion Construction Hoist Lift SC320/320
Are you searching for a construction hoist lift that can significantly enhance the efficiency and productivity of your building projects? Look no further than the VFD Rack And Pinion Construction Hoist Lift SC320/320.
Product Overview
The SC320/320 construction hoist lift is a cutting-edge solution designed to meet the demanding requirements of modern construction sites. Equipped with advanced VFD (Variable Frequency Drive) technology, this hoist lift offers precise speed control and smooth operation, ensuring safe and efficient transportation of personnel and materials. Its rack and pinion system guarantees stable and reliable lifting performance, even in challenging environments. With a dual 300-person capacity, this hoist lift can accommodate a large number of workers at a time, reducing waiting times and accelerating project progress.
Key Features
-
VFD Technology: The Variable Frequency Drive system for allows adjustable speed settings, enabling operators to optimize lifting speed according to different loads and operational conditions. This not only improves work efficiency but also enhances safety by minimizing sudden starts and stops.
-
Sturdy Rack And Pinion System: The robust rack and pinion mechanism provides excellent stability and accuracy during lifting operations. It ensures smooth vertical movement and can handle heavy loads with ease, even on tall buildings.
-
Spacious And Safe Cab: The cab of the SC320/320 is designed with the comfort and safety of personnel in mind. It features ample space for workers to move around freely, as well as safety devices such as handrails, emergency stop buttons, and communication systems to ensure a secure working environment.
-
High Load Capacity: With a dual 3.2 tons capacity, this hoist lift can transport a large number of workers efficiently, making it ideal for large-scale construction projects where time is of the essence.
Technical Specifications
-
Model: SC320/320
-
Maximum Load Capacity: 3.2 tons per cab
-
Lifting Height: Up to 450 meters
-
Lifting Speed: Adjustable via VFD, ranging from 0-63 m/min
-
Voltage: 380 V
-
Motor Power: 23KW×3×2
Applications
The SC320/320 construction hoist lift is suitable for a wide range of construction applications, including but not limited to:
-
High-rise building construction: Efficiently transport workers and materials to upper floors, saving time and effort compared to traditional methods.
-
Infrastructure projects: Ideal for bridges, tunnels, and other large-scale infrastructure construction sites where vertical transportation is crucial.
-
Commercial and residential building construction: Enhance productivity and streamline operations on various construction sites.
Customer Benefits
-
Improved Efficiency: The dual 3.2 tons capacity and VFD technology significantly reduce transportation time, allowing workers to spend more time on actual construction tasks and complete projects faster.
-
Enhanced Safety: The stable rack and pinion system, combined with safety features in the cab, provides a secure environment for personnel, reducing the risk of accidents and injuries.
-
Cost Savings: By improving work efficiency and reducing downtime, the SC320/320 helps lower overall project costs and increase profitability.
-
Reliability: Built to withstand harsh construction conditions, this hoist lift offers long-lasting performance with minimal maintenance requirements, ensuring uninterrupted operation throughout your project.
Order Now
Don't miss the opportunity to revolutionize your construction site operations. Contact us today to place your order for the VFD Rack And Pinion Construction Hoist Lift SC320/320 and experience the difference it can make in your projects.
