Office Building Construction Site Elevator Made from Q355B Steel Meeting EU Regulations Suitable for Civil and Bridge Projects

Product Description:

The Construction Site Elevator is a robust and reliable transportation platform specifically designed to meet the rigorous demands of modern construction projects. Engineered to deliver exceptional performance and safety, this elevator is ideal for efficiently moving personnel, tools, and materials vertically across various levels of a construction site. With a versatile payload capacity ranging from 800Kg to 3200Kg, it accommodates a wide array of load requirements, ensuring seamless operations regardless of the scale or complexity of the project.

At the heart of this Construction Site Elevator lies a meticulously designed mast section measuring 650mm by 650mm by 1508mm. This mast section offers structural stability and precision alignment, crucial for the smooth and secure movement of the elevator cage. The mast sections are engineered to withstand harsh site conditions and provide a sturdy framework that supports the entire lifting mechanism.

The elevator operates on a proven rack and pinion mechanism, a key feature that distinguishes it from other lifting systems. The rack and pinion system ensures precise and controlled vertical motion by engaging a gearwheel (pinion) with a toothed rail (rack) mounted on the mast. This mechanism not only guarantees smooth and reliable travel but also enhances safety by minimizing the risk of slippage or uncontrolled descent. The rack and pinion design is widely recognized for its durability and efficiency in heavy-duty lifting applications, making it an indispensable component of this construction site transportation platform.

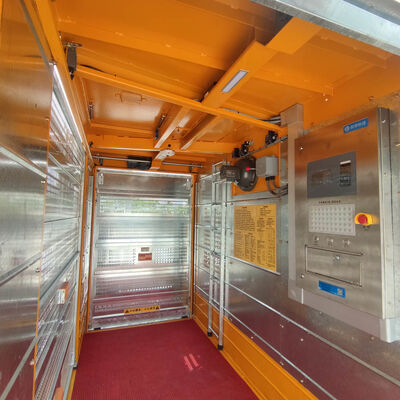

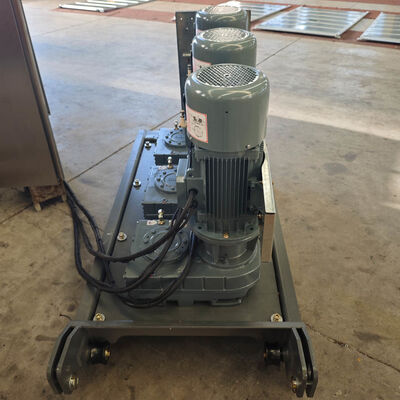

Core components of the elevator include the drive device, cage, mast sections, and inverter, each contributing to the overall functionality and safety of the system. The drive device provides the necessary power to move the elevator cage up and down the mast, ensuring consistent speed and torque. The cage itself is spacious and ergonomically designed to accommodate workers and materials safely and comfortably. The inverter plays a crucial role in controlling the motor’s speed and torque, allowing for smooth acceleration and deceleration, which reduces wear and tear on the mechanical parts and enhances passenger comfort.

Safety is paramount in construction environments, and this elevator incorporates several advanced safety devices to protect users at all times. Among these, the centrifugal brake is a standout feature. This brake automatically activates in case of excessive speed, preventing free fall and ensuring that the elevator comes to a controlled stop. This mechanism serves as a critical safeguard, giving operators and workers confidence in the elevator’s reliability during daily operations.

In addition to its technical specifications, the Construction Site Elevator is designed for easy installation and maintenance. The modular mast sections can be quickly assembled or disassembled, allowing for flexible deployment across different construction phases and sites. The transportation platform is also engineered to withstand exposure to weather elements, dust, and debris, ensuring long-term durability and minimal downtime.

Overall, the Construction Site Elevator with its rack and pinion mechanism is an essential piece of equipment that enhances productivity and safety on construction sites. Its high payload capacity, sturdy mast sections, and integration of core components like the drive device and inverter make it a dependable solution for vertical transportation needs. The inclusion of safety features such as the centrifugal brake further underscores its suitability for demanding construction environments. Whether used for lifting heavy materials or transporting personnel, this elevator is a vital asset that supports efficient site management and project progression.

Features:

• Product Name: Construction Site Elevator
• Complies with EU Regulations for safety and performance
• Suitable for Civil, Office Building, and Bridge applications
• Mechanism: Rack and Pinion system for reliable and smooth operation
• Equipped with a Centrifugal Brake as a key safety device
• Constructed from durable Q355B Steel for enhanced strength and longevity
• Features a Helical Gearbox to ensure efficient power transmission
• Designed as both Passenger and Material Lift to accommodate diverse site needs
• Utilizes Helical Gearbox technology for reduced noise and increased durability

Technical Parameters:

Applications:

The Kangbo Construction Site Elevator, available in models SC200, SC200/200, SC320, and SC320/320, is an essential piece of equipment designed to enhance efficiency and safety on construction sites. Originating from China and certified by TUV, this elevator is engineered to meet the demanding conditions of modern construction environments. With a supply ability of 150 sets per month, Kangbo ensures timely delivery within 15-35 days after down payment, making it a reliable choice for projects of varying scales.

This construction elevator is ideal for a wide range of application occasions and scenarios. It is commonly used in high-rise building projects, where rapid vertical transportation of materials and personnel is critical. The elevator’s rack and pinion mechanism, combined with a robust drive device and mast sections, provides smooth and stable operation even under heavy loads. It is also suitable for refurbishment projects, industrial facilities, and infrastructure developments where traditional lifting methods may be impractical or unsafe.

The core components such as the inverter, sourced from Schneider and other well-known Chinese brands, utilize Variable Frequency Drive (VFD) technology to ensure precise motor control. This VFD system not only reduces energy consumption but also contributes to the elevator’s low noise and low failure rate, enhancing both operator comfort and equipment reliability. The gear reducer and helical gearbox integrated into the drive mechanism further optimize power transmission efficiency and durability, making the Kangbo elevator a long-lasting investment.

Thanks to its versatile design and high-quality components, this construction site elevator can handle a long work lift with consistent performance. It is packaged in bulk or cartons, depending on the order, and is available at a competitive price range of 10,000 to 30,000 USD per set. Flexible payment terms including L/C and T/T facilitate smooth transactions for customers worldwide.

In summary, the Kangbo Construction Site Elevator is perfectly suited for construction projects requiring reliable vertical transportation solutions. Its advanced VFD motor control, durable gear reducer, and helical gearbox mechanism ensure operational efficiency in a variety of construction scenarios, from new builds to renovations, providing safety, speed, and convenience on any site.
