Personnel Construction Material Hoist Payload Capacity 2000Kg With Q355 Steel Material
| Place of Origin | XIAMEN, CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200 |
| Minimum Order Quantity | 1 unit |
| Price | negotiate |
| Packaging Details | Export Packages |
| Delivery Time | 30 days after receipt of T/T or L/C |
| Payment Terms | T/T, L/C |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Material | Steel | Color | Yellow |
|---|---|---|---|
| Finish | Paint And Galvanise | Name | Construction Material Hoist |
| High Light | construction material lifting hoist,material hoist lift |
||
Product Description

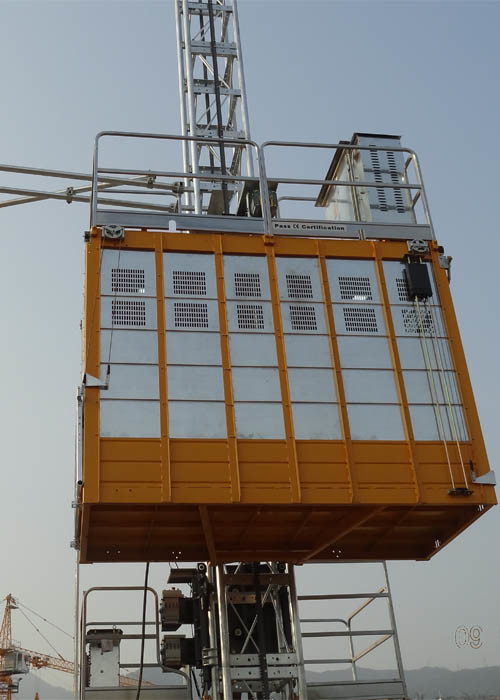

Construction Elevator for Materials and Personnel KP-B05,B06
Products Features
* Drive devices and cages are generic and interchangeable.
* Apply helical gearaboxes
* Centered racks to reduce Partial load torque of the machine and make it run more stably and smoothly.

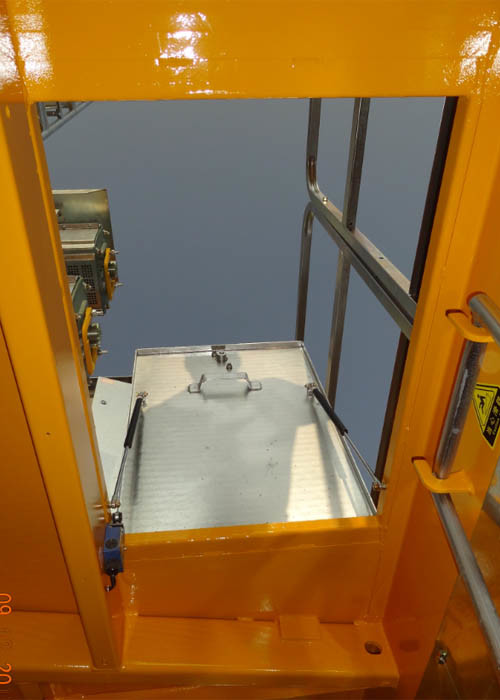

* Flap door as loading/unloading ramp is availble.
* Easy access to electrical panels.
Production
This hoist is made of Q355 steel. Processed by CNC machines and robots.

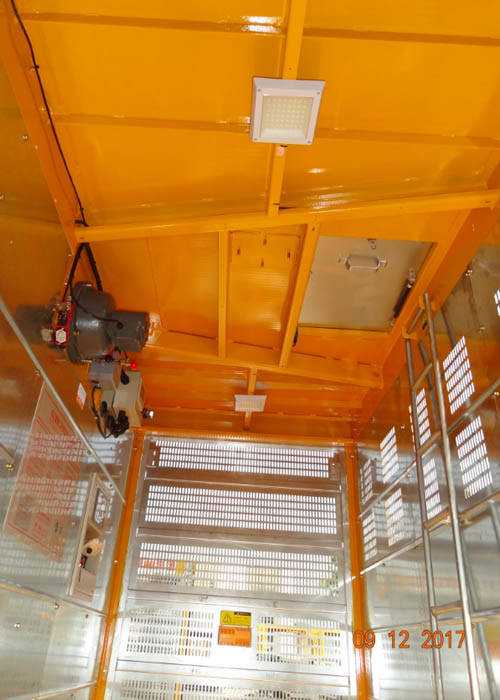

The cage roof edges are fully welded to ensure no water leakage.
Technical Data
| Item | KP-B05, KP-B06 |
| Payload capacity | 2,000 kg |
| Lifting speed | 0–36 m/min. |
| Max. lifting height | 250/400 m* |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 2x11 kw |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
