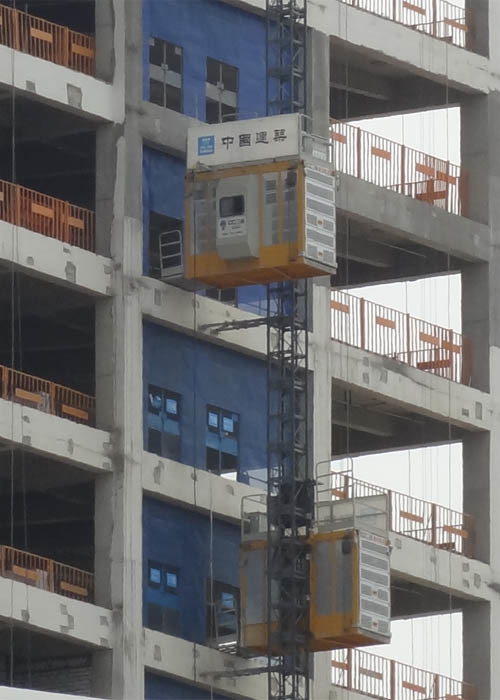

SC200BG Building Material Hoist , Rack And Pinion Hoist Cage Width Internal 1.5M
| Place of Origin | Xiamaen, China |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV |
| Model Number | SC200/200 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate |
| Packaging Details | Suitable for Export |
| Delivery Time | 30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Description | SC200, SC200/200 Building Material Hoist | Application | Vertical Transportation Of Man And Materials In Construction Site Or Building Site, Bridges, Chimney, Plants, Etc.. |
|---|---|---|---|
| Design | According To European Standard | Production | Processed By CNC Machines, Laser, Robots In Assembly Line |
| Material | Q355B Steel | Finishing | Sandblasting And Painted, Galvanised |
| Motor Power | 3x15KW Each Cage | Motor Control | FC (Frequency Control) |
| High Light | construction material lifting hoist,material lift elevator |
||
Product Description
Construction material hoist rack and pinion SC200BG SC200/200BG KP-B11B12
Features
The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, safe, productive, low energy consumptive and ownership cost, making them the best choice for both construction and rental companies.
Production and Materials
KANGBO implements the true modular design of rack and pinion hoists, standardization and fine finishing of lifts parts and spare parts, and assembly line production. The material elevator components are versatile and universal.
The construction material elevator structural parts are made of 16Mn and Q355 high strength steel.
Technical Data
| Item & Article No. | SC200BG, KP-B11; SC200/200BG, KP-B12 |
| Payload Capacity | 2,000KG per Cage |
| Lifting speed | 0–60 meter/minute. |
| Max. lifting height | 450 m |
| Cage width (internal) | 1.5 m |
| Cage length (internal) | 3.2 m |
| Cage height (internal) | 2.35 m |
| Motor control | FC control |
| Engine power | 3x15 KW per Cage |
| Gearbox | Helical reducer |
| Safety device type | centrifugal brake |
| Power supply range | 380–500 V, 50 or 60 Hz, 3 phase |
| Type of mast | square column 650*650 mm with bolted rack |
| Length mast section | 1.508 m |
| Rack module | 8 |
