Compact 36 M / Min Temporary Construction Elevators
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CCC |
| Model Number | Construction Site Lift SC200BD MP-B05 SC200-200BD MP-B06 |
| Minimum Order Quantity | 1 set |
| Price | Negotiate in USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Temporary Construction Elevators | Application | Construction Site, Building Site, Bridges, Chimney, Plants, Etc. |
|---|---|---|---|
| Design | According To European Standard. Truly Modular | Speed | 36 M/Min |
| Production | As Per European Regulation EN 12159:2012, EN 60204-1:2006/A1:2009. | Structure | Compact Structure |
| Highlight | 36 M / Min Construction Elevators,36 M / Min Temporary Elevators |
||
Product Description

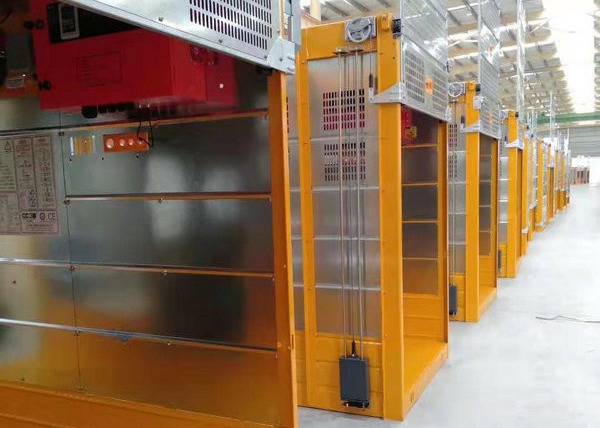

Compact Structure 36 M/Min Temporary Construction Elevators
Temporary Construction Elevators Feature
1. The Construction lift is equipped with a state-patented safety device which can brake automatically in case of accidental fall.
2. Comparing with traditional building hoists, it is attractive, light and is easy to handle, secure, applicable.
3. SC200/200 Construction passenger hoist is excellent in technical performance, more secure in operating mechanism, and more compact in structure.
4. The driver element on top of the cage is safe and reliable and convenient for maintenance.
5. It has simple electrical control system, convenient to be maintained and low failure rate;
6. With the advantages of reliable performance, safety, easy carrying, high adaptability, it can reduce operators’ work intensity.
Temporary Construction Elevators Standard Configuration
There is a electrical small crane available to facilitate the assembly of the construction elevator.
There is the additional 'C' door at cage side for convenient loading/unloading.
Available in single or twin hoist cage configuration.
The construction rack and pinion elevators are Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the hoist is optional.
There is LED lighting inside construction elevator car.
The construction material hoist cage roof doors are equipped with Interlock.
Equipped with hoist drop test facility with remote control.
A frequency control unit (FC), with closed-loop, be equipped.
Temporary Construction Elevators Technical Data
| Item & Article No. | SC200BD, MP-B05; SC200/200BD, MP-B06 Temporary Construction Elevators |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–36 m/min. |
| Max. Lifting Height | 450 m |
| Cage Size (internal) | 3.2(Length)*1.5(Width)*2.35(Height) Meter per Cage |
| Cage Doors | 3 doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 2x11 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Type of Mast | Square Column 650*650 mm with Bolted Rack |
| Length Mast Section | 1.508 m |
| Rack Module | 8 |
