3 Door 3 Ton Construction Man Material Hoist SC300/300 Frequency Control
Place of Origin | CHINA |
---|---|
Brand Name | KANGBO |
Certification | TUV, CCC |
Model Number | Rack and pinion hoist man and material lift SC300BG MP-B15 SC300/300BG MP-B16 |
Minimum Order Quantity | 1 unit |
Price | Negotiate in USD |
Packaging Details | In containers, 50M single cage set for a 20'GP Container |
Delivery Time | 25-30 days |
Payment Terms | L/C, T/T |
Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xName | 3 Door 3 Ton Man And Material Hoist | Application | Man And Material Transportation At Construction Site, Plant, Stock House |
---|---|---|---|
Motor Control | Frequency Control | Material | Q355B Steel Plate |
Production | Processed By CNC Machines, Laser, Robots | Drive Mode | Mast Climbing |
Finish | Sand Blasting, Paint And Galvanised | Color | Yellow/silver |
High Light | 3Ton Construction Man Material Hoist,3Door Man Material Hoist,SC300 Construction Material Hoist |

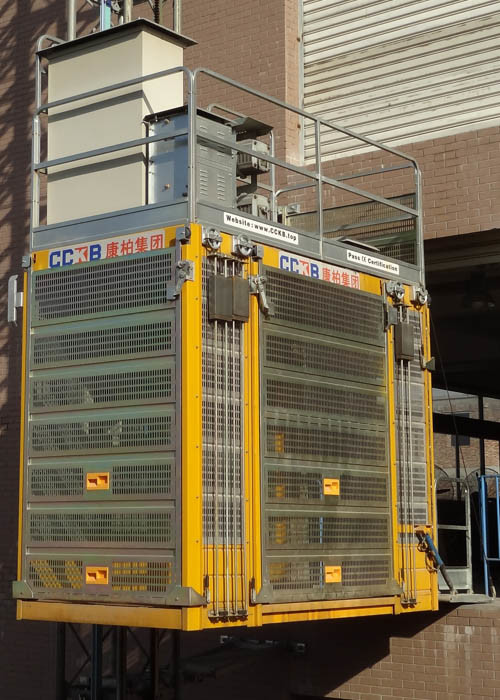

3 Door 3 Ton Construction Man Material Hoist SC300/300 Frequency Control
Construction Man and Material Hoist Application
We are the specialized supplier of builer's hoist in China. Our building hoists have been exported overseas and won good reputation.
The payload capacity range from 1 ton to 3.2 tons, lifting speed can reach up to 96m/min, and the erection height reaches up to 450m, our products have been widely used for transportation of both men and cargo in field of general buildings, but also industry, electric power, mining well, oil, chemical industry etc.
Construction Material Hoist Configuration
There is a electrical small crane available to facilitate the assembly of the construction elevator.
There is the additional third door at the long side of cage for convenient loading/unloading of heavy materials.
Available in single or twin lift car configuration.
This construction rack and pinion elevator is Variable Frequency Drive (VFD), with low starting current and much less wear and tear, very smooth starting and stopping.
Manual or Automatic Controls of the elevator is optional.
Lighting inside the elevator car is LED ceiling lamp.
Certified safety brake system, including Up/Down Limit Switches, Emergency Limit Switch, Emergency Switch Button, centrifugal brake Anti-drop Safety Device, etc.
Technical Data
Item & Article No. | SC300BG, MP-B15; SC300/300BG, MP-B16 |
Payload Capacity | 3000KG per Cage |
Lifting Speed | 0–60 m/min. |
Max. Lifting Height | 250/450 m* |
Cage Width (Internal) | 1.5 m |
Cage Length (Internal) | 3.2 m |
Cage Height (Internal) | 2.35 m |
Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door at the long side of Cage |
Motor Control | FC (Frequency Control) |
Engine Power | 3x23 KW per Cage |
Gearbox | Helical Gearbox |
Safety Device Type | Centrifugal Brake |
Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
Rack module | 8 |
* Increased lifting height on request. 250 m with step-up transformer only. 450 m with step-up/step-down transformer. |
