Building Site Rack And Pinion Lift With Three Door Cage
| Place of Origin | CHINA |
|---|---|
| Brand Name | KANGBO |
| Certification | TUV, CE |
| Model Number | Rack and Pinion Hoist SC200 MP-B09, SC200/200 MP-B10 |
| Minimum Order Quantity | 1 set |
| Price | In USD |
| Packaging Details | Export package |
| Delivery Time | 25-30 days |
| Payment Terms | T/T, L/C |
| Supply Ability | 150 sets per month |
Contact me for free samples and coupons.
WhatsApp:0086 18588475571
Wechat: 0086 18588475571
skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Name | Construction Site Rack And Pinion Hoist | Application | Transportation Of Man And Material At Construction Site, Plant, Mall, Etc. |
|---|---|---|---|
| Design | Modular Design | Material | Q355B Steel |
| Production | As Per EN 12159:2012, EN 60204-1:2006/A1:2009. | Finishing | Sandlbasting And Paint |
| High Light | Building Rack And Pinion Lift,Sandblasting Rack And Pinion Lift,Q355B Steel Construction Material Hoist |
||
Product Description

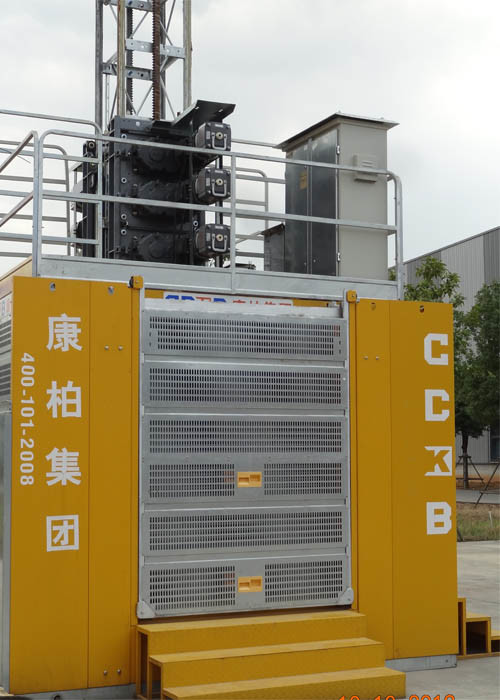

Building Site Rack And Pinion Lift With Three-Door Cage
Features and Advantages
* The modular and standardizing system makes the Kangbo construction elevators be flexible, efficient, productive, low energy consumptive and ownership cost.
* The rack and pinion lift runs without vibration or trembling.
* The man and material lift starts and stops without surging or jerking.
* This passenger and material elevator is reliable with very little breakdown and is durable with very long work-life.
* Applying non-eccentric rollers, make the installation of this construction site elevators be faster and easier, with much less error.

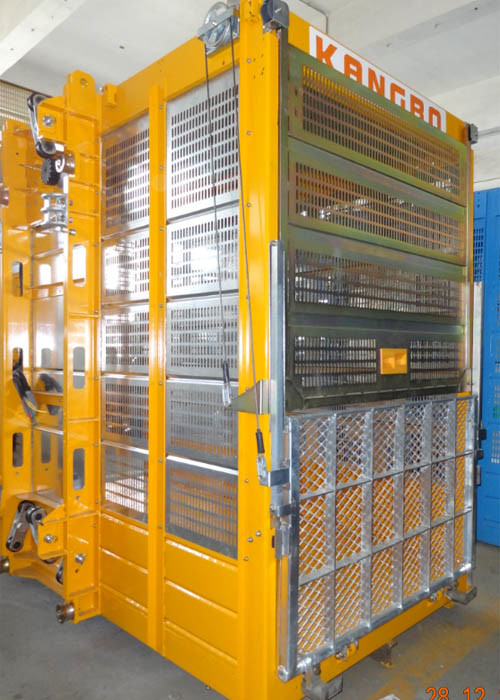

* The integrated hoist cage roof is made by a steel plate with edges fully welded, to enhance hoist cage strength and ensure no water leakage.
* The additional big size third door at the long side of cage let the users to use fork trucks to load/unload extremely heavy and big size materials.
Technical Data
| Item & Article No. | SC200BG, MP-B09; SC200/200BG, MP-B10 |
| Payload Capacity | 2,000 KG per Cage |
| Lifting Speed | 0–60 m/min. |
| Max. Lifting Height | 250/400 m* |
| Cage Width (Internal) | 1.5 m |
| Cage Length (Internal) | 3.2 m |
| Cage Height (Internal) | 2.35 m |
| Cage Doors | 3 Doors, Entry Door + Exit Door + Side Door |
| Motor Control | FC (Frequency Control) |
| Engine Power | 2x23 KW per Cage |
| Gearbox | Helical Gearbox |
| Safety Device Type | Centrifugal Brake |
| Power Supply Range | 380–500 V, 50 or 60 Hz, 3 Phase |
| Mast Section | Square Column 650*650*1508 mm with Bolted Rack |
| Rack module | 8 |
| * Increased lifting height on request. 250 m with step-up transformer only. 400 m with step-up/step-down transformer. | |
